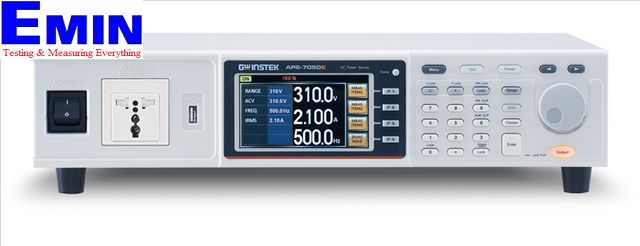

Model: APS-7050E
Made in: Taiwan
Warranty: 12 months
Maximum Output Capacity:
Power Rating: 500VA
Range Output Voltage Setting: 0~155Vrms, 0~310Vrms, Auto
Range Output Maximum Current: 4.2A/2.1A
Range Output Maximum Peak Current: 16.8A/8.4A
Output Frequency Setting:
Range: 45.0~500Hz
Resolution: 0.01Hz(45.0~99.99Hz)
0.1Hz(100.0~500.0Hz)
Setting Accuracy: ±(0.02% of setting)
Waveform:
Total harmonic distortion: ≦0.5% at 45~500Hz (Resistive load)
Voltage Regulation:
Line Regulation: 0.1% of full scale
Load Regulation: 0.5% of full scale
Measurement:
Frequency: Range: 45~ 500Hz
Resolution: 0.01Hz (45.0~99.99Hz)
0.1Hz (100.0~500.0Hz)
Voltage (r.m.s): Range: 0.2~38.75 Vrms
38.76~77.5 Vrms
77.51~155.0 Vrms
155.1~310.0 Vrms
Resolution: 0.01V at 0.00~99.99 Vrms
0.1V at 100.0~310.0 Vrms
Accuracy: ±(0.5% of reading+ 2counts)
Current (r.m.s): Range: 2.00~70.00mA
60.0~350.0mA
0.300~3.500A
3.00~17.50A
Resolution: 0.01mA
0.1mA
0.001A
0.01A
Accuracy: ±(0.6% of reading+5 counts), 2.00~350.0mA
±(0.5% of reading+5 counts), 0.350~3.5A
±(0.5% of reading+3 counts), 3.500~17.5A
Power (W): Resolution: 0.01W
0.1W
1W
Accuracy: ±(0.6% of reading+5 counts), 0.2~99.99W
±(0.6% of reading+5 counts), 100.0~999.9W
±(0.6% of reading+2 counts), 1000~9999W
Power Factor: Resolution: 0.001
Accuracy: ±(2% reading+ 2 counts)
Memory: 10 (0~9 numeric keys)
Others:
AC Input: 115/230 Vac±15%
Phase: Single Phase, Two wire (1P2W)
Protection: OCP, OPP, OHP and Alarm
Dimension (W*H*D) & Weight : 430x88x400,24Kg
