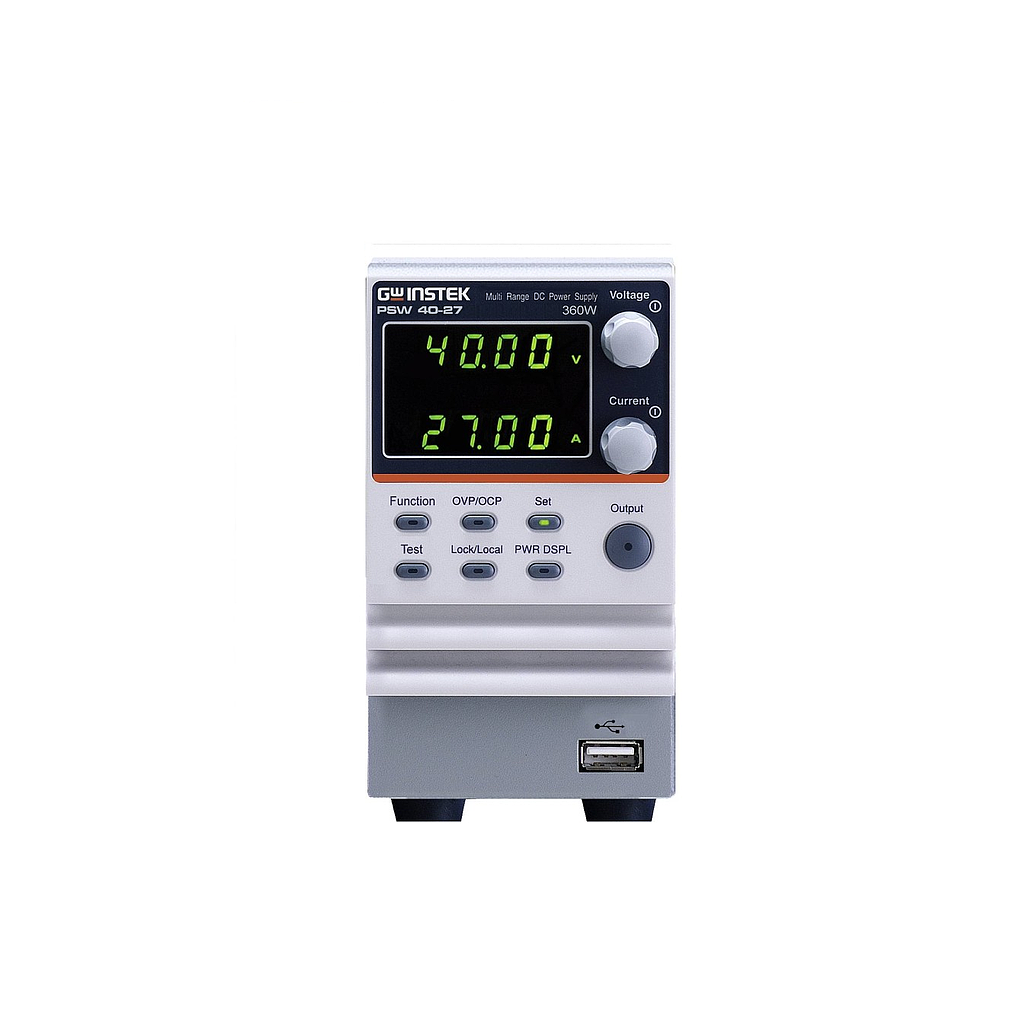

OUTPUT RATING
Voltage: 0~40V
Current: 27A
Power: 360W
REGULATION(CV)
Load: 25mV
Line: 23mV
REGULATION(CC)
Load: 32mA
Line: 32mA
RIPPLE & NOISE (Noise Bandwidth 20MHz; Ripple Bandwidth=1MHz)
CV p-p: 60mV
CV rms: 7mV
CC rms: 54mA
PROGRAMMING ACCURACY
Voltage: 0.1% + 10mV
Current: 0.1% + 20mA
MEASUREMENT ACCURACY
Voltage: 0.1% +10mV
Current: 0.1% +20mA
RESPONSE TIME
Raise Time
Fall Time(Full Load): 50ms
Fall Time(No Load): 50ms
Load Transient Recover Time: 500ms
(Load change from 50~100%): 1ms
PROGRAMMING RESOLUTION (By PC Remote Control Mode)
Voltage: 1mV
Current: 1mA
MEASUREMENT RESOLUTION (By PC Remote Control Mode)
Voltage: 1mV
Current: 1mA
SERIES AND PARALLEL CAPABILITY
Parallel Operation: Up to 3 units including the master unit
Series Operation: Up to 2 units including the master unit
ENVIRONMENT CONDITION
Operation Temp: 0 ~ 50 ℃
Storage Temp: -25 ~ 70 ℃
Operating Humidity: 20% ~ 85% RH; No condensation
Storage Humidity: 90% RH or Less; No condensation
OTHER:
Analog Control: Yes
Interface: USB/LAN/GPIB-USB(Option)/RS232-USB(Option)
Fan: With thermal sensing contro
POWER SOURCE: 85VAC~265VAC, 47~63Hz, single phase
