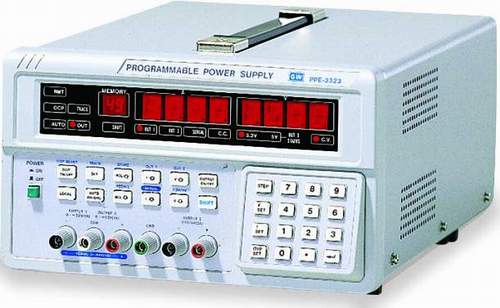

GW INSTEK PPE-3323 Programmable Linear DC Power Supply (32V, 3A, 207W, 3 CH)
ຜູ້ຜະລິດGW INSTEK(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
ModelPPE-3323
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
-
Power cord x 1
Test lead GTL-105A x 3
Test lead GTL-105A x 3
OUTPUT | |
| Voltage | 0~+32V, 0~-32V, 3.3V/5V Fixed |
| Current | 0~+3A, 0~-3A, 3A Fixed |
| OVP | 0~+33V, 0~-33V |
LOAD REGULATION | |
| Voltage | < 6mV |
| Current | < 3mA |
LINE REGULATION | |
| Voltage | < 3mV |
| Current | < 3mA |
RESOLUTION | |
| Voltage | 10mV ( 20mV rating voltage > 36V ) |
| Current | 1mA ( 2mA rating current >3.5A ) |
| OVP | 10mV( 20mV rating voltage > 36V ) |
PROGRAM ACCURACY (25±5° C) | |
| Voltage | < 0.05% + 25mV ( + 50mV rating voltage > 36 V ) |
| Current | < 0.2% + 10mA |
| OVP | < 2% + 0.6V |
RIPPLE & NOISE (20Hz ~ 20MHz) | |
| Voltage | Ripple 1mVrms / 3mVp-p Noise 2mVrms / 30mVp-p |
| Current | < 3mA rms ( < 5mA rms rating current > 3.5A ) |
TEMPERATURE (0~40° C ) COEFFICIENT | |
| Voltage | < 100ppm + 3mV |
| Current | < 150ppm + 3mA |
READBACK RESOLUTION | |
| Voltage | 10mV ( 20mV rating voltage > 36V ) |
| Current | 1mA ( 2mA rating current > 3.5A ) |
READBACK ACCURACY (25±5° C) | |
| Voltage | < 0.05% + 25mV ( + 50mV rating voltage > 36V ) |
| Current | < 0.2% + 10mA |
RESPONSE TIME | |
| Voltage Up(10%~90%) | < 100mS |
| Voltage Down(90%~10%) | < 100mS (≧ rating load) |
READBACK TEMPERATURE COEFFICIENT | |
| Voltage | < 100ppm + 10mV ( + 20mV rating voltage > 36V ) |
| Current | < 150ppm + 10mA |
DRIFT | |
| Voltage | ≦ 100 ppm+10mV |
| Current | ≦ 150 ppm+10mA |
TRACK OPERATION | |
| Tracking Error | < 0.1% + 50mV |
| Series Regulation | < 50mV |
MEMORY | |
| Store / Recall 50 sets | |
TIMER | |
| Setting time | 1 sec ~ 99 min ( Max 99 min x 50 sets) |
| Resolution | 1 sec |
| Function | for output working loop ( Auto Step Running) |
INTERFACE | |
| RS-232 | |
| POWER SOURCE | |
| AC100V/120V/220V/240V±10%, 50/60Hz | |
ACCESSORIES | |
| User manual x 1 Power cord x 1 Test lead GTL-105A x 3 | |
| DIMENSIONS & WEIGHT | |
| 255(W) x 145(H) x 346(D)mm Approx. 10 kg | |
