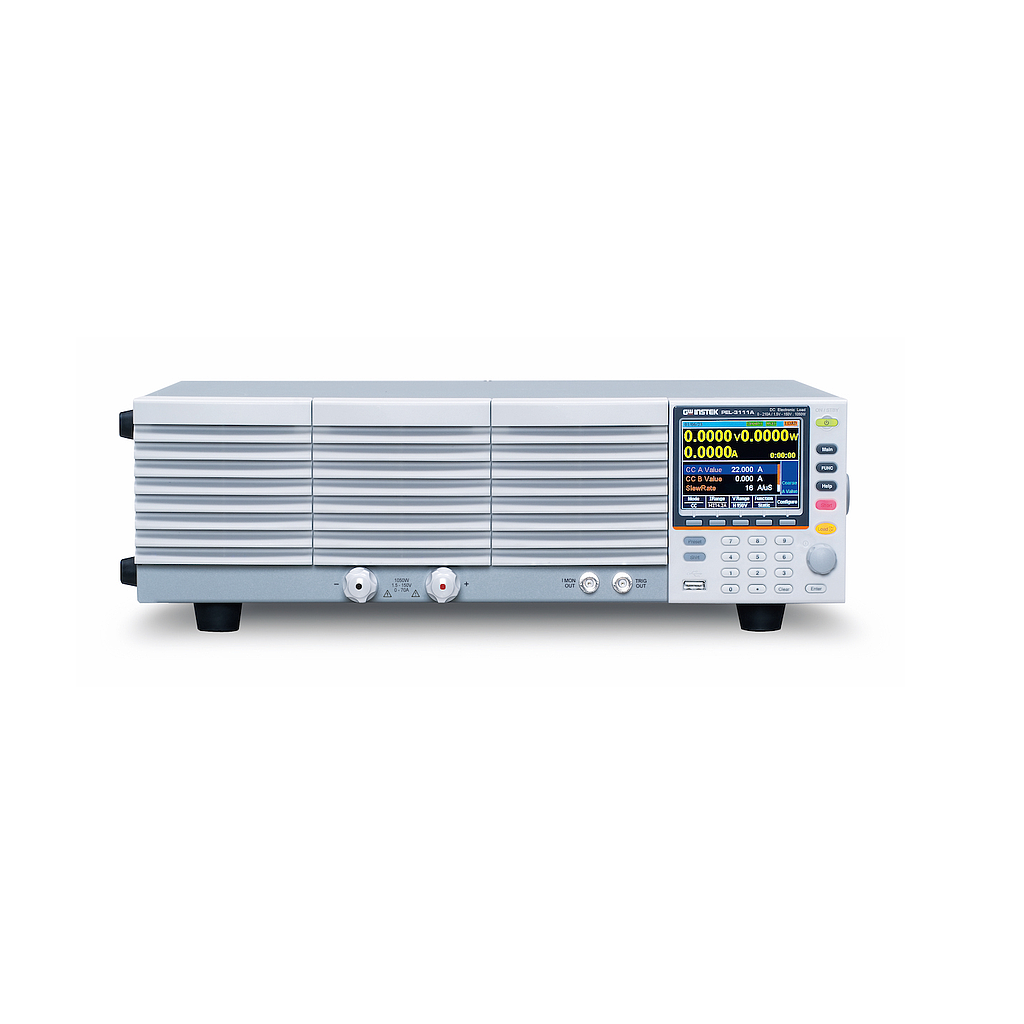

GW INSTEK PEL-3111A ການໂຫຼດເອເລັກໂຕຣນິກ DC ທີ່ສາມາດຕັ້ງໂປຣແກຣມໄດ້ (150 V/ 210 A/ 1050 W)
Voltage: 0 V to 150 V
Current: 210 A
Power: 1050 W
Input Resistance: 500 kΩ
Min. Operating:
0.75 V at 105 A
1.5 V at 210A
CONSTANT CURRENT MODE (CC)
Operating Range (H, M, L): 0 A~ 210 A, 0 A ~ 21 A, 0 A ~ 2.1 A
Accuracy of Setting (H, M): ±(0.2 % of set + 0.1 % of F.S.) + Vin/500 kΩ
Accuracy of Setting (L): ±(0.2 % of set + 0.1 % of F.S.) + Vin/500 kΩ
Accuracy of Setting(Parallel): ±(1.2% of set + 1.1% of F.S)
Resolution (H, M, L): 10 mA ,1 mA, 0.1 mA
CONSTANT RESISTANCE MODE (CR)
Operating Range
Range (H):
140.0016 S to 2.4 mS
(7.1427 mΩ to 416.6667 Ω)
Range (M):
14.0001 S to 242.4 μS
(71.427 mΩ to 4.16667 kΩ)
Range (L):
1.40001 S to 24.24 μS
(714.27 mΩ to 41.6667 kΩ)
Accuracy of Setting (H, M): ±(0.5 % of set + 0.5 % of F.S.) + Vin/500 kΩ
Accuracy of Setting (L): ±(0.5 % of set + 0.5 % of F.S.) + Vin/500 kΩ
Parallel: ±(1.2 % of set + 1.1 % of F.S)
CONSTANT VOLTAGE MODE (CV)
Operating Range
Range (H): 1.5 V to 150 V
Range (L): 1.5 V to 15 V
CONSTANT POWER MODE (CP)
Operating Range
Range (H): 105 W to 1050 W
Range (M):10.5 W to 105 W
Range (L): 1.05 W to 10.5 W
GENERAL
Input Range:90 Vac to 132 Vac/180 Vac to 250 Vac Single-phase; 47 Hz to 63 Hz
Power(Max.):190 VA
Interface: Standard：USB, RS-232/RS-485, LAN. Optional：GPIB
Dimensions (W x H x D): 427.8 mm x 124 mm x 400.5 mm
Weight: Approximate 17 kg
