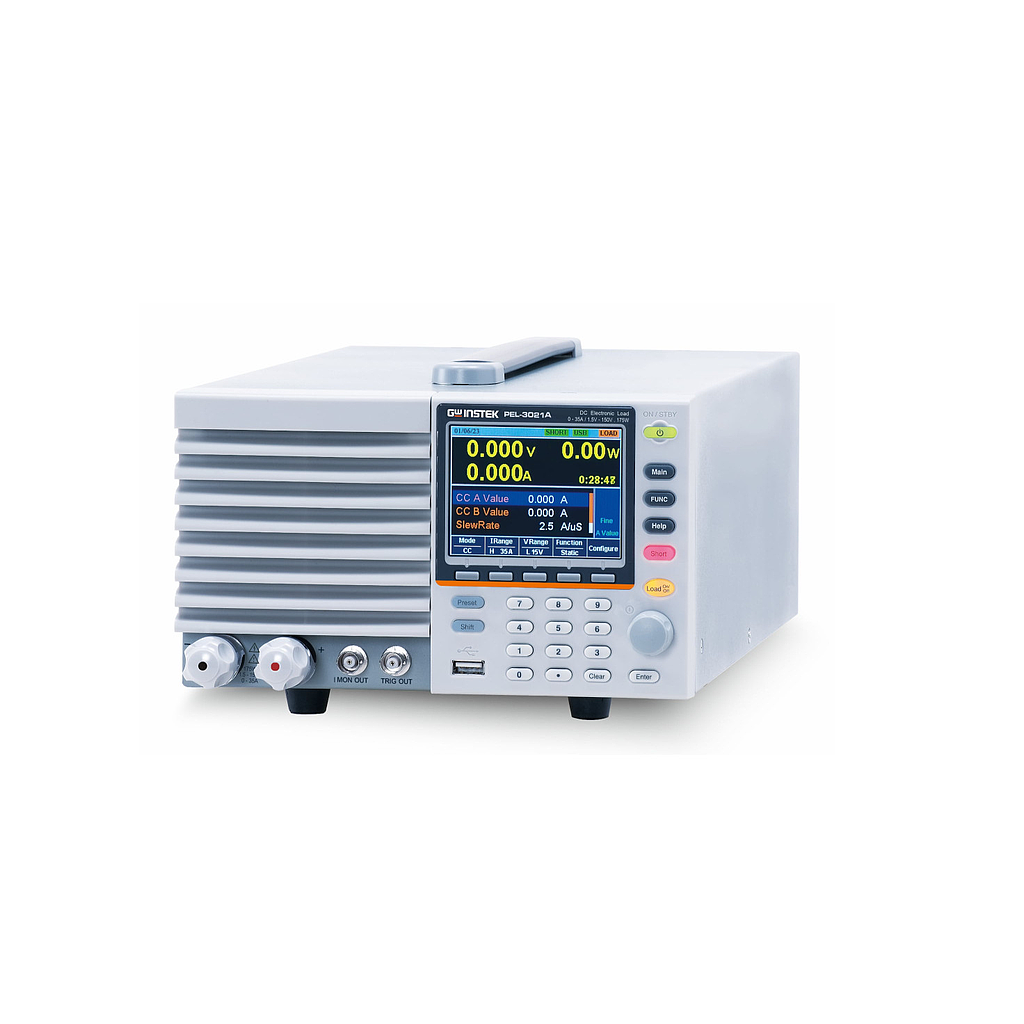

GW INSTEK PEL-3021A ການໂຫຼດເອເລັກໂຕຣນິກ DC ທີ່ສາມາດຕັ້ງໂປຣແກຣມໄດ້ (35 A / 0 V ~ 150 V / 175 W)
Voltage: 0 V to 150 V
Current: 35 A
Power: 175 W
Input Resistance: 500 kΩ
Min. Operating:
0.75 V at 105 A
1.5 V at 35A
CONSTANT CURRENT MODE (CC)
Operating Range (H, M, L): 0 A ~ 35 A ,0 A ~3.5 A , 0 A ~ 0.35 A
Accuracy of Setting (H, M): ±(0.2 % of set + 0.1 % of F.S.) + Vin/500 kΩ
Accuracy of Setting (L): ±(0.2 % of set + 0.1 % of F.S.) + Vin/500 kΩ
Accuracy of Setting(Parallel): ±(1.2% of set + 1.1% of F.S)
Resolution (H, M, L): 1 mA, 0.1 mA, 0.01 mA
CONSTANT RESISTANCE MODE (CR)
Operating Range
Range (H):
23.3336 S to 400 μS
(42.857 mΩ to 2.5 kΩ)
Range (M):
2.33336 S to 40 μS
(428.566 mΩ to 25 kΩ)
Range (L):
0.233336 S to 4 μS
(4.28566 Ω to 250 kΩ)
Accuracy of Setting (H, M): ±(0.5 % of set + 0.5 % of F.S.) + Vin/500 kΩ
Accuracy of Setting (L): ±(0.5 % of set + 0.5 % of F.S.) + Vin/500 kΩ
Parallel: ±(1.2 % of set + 1.1 % of F.S)
CONSTANT VOLTAGE MODE (CV)
Operating Range
Range (H): 1.5 V to 150 V
Range (L): 1.5 V to 15 V
CONSTANT POWER MODE (CP)
Operating Range
Range (H): 17.5 W to 175 W
Range (M):1.75 W to 17.5 W
Range (L): 0.175 W to 1.75 W
GENERAL
Input Range: 90 Vac to 132 Vac/180 Vac to 250 Vac Single-phase; 47 Hz to 63 Hz
Power(Max.): 90 VA
Interface: Standard：USB, RS-232/RS-485, LAN. Optional：GPIB
Dimensions (W x H x D): 213.8 mm x 124 mm x 400.5 mm
Weight: Approximate 6kg
