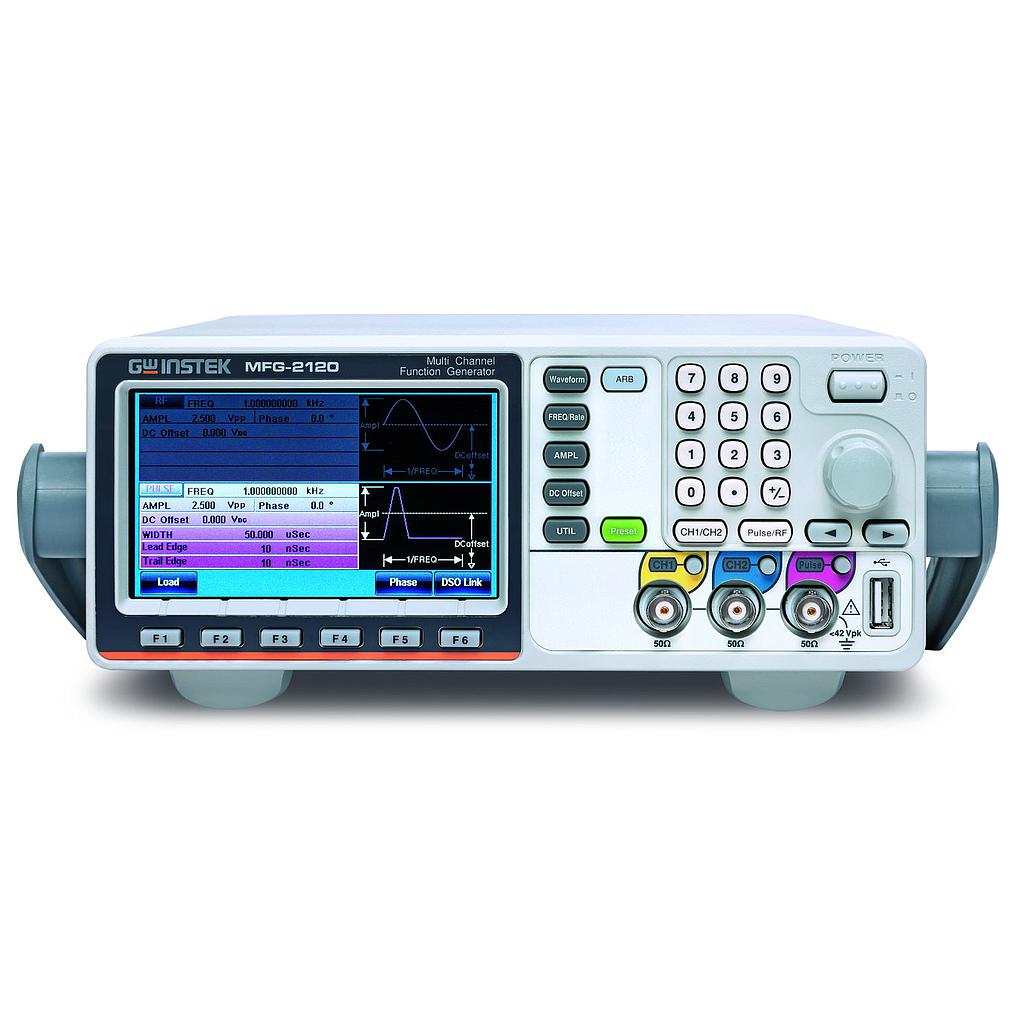

H1/ CH2
Arbitrary Functions
ARB function
Built-in
Sample Rate
200 MSa/s
Repetition Rate
100MHz
Waveform Length
16k points
Amplitude Resolution
14 bits
Non-Volatile Memory
10sets 16k points(1)
User-defined output section
From point 2~16384
User-defined output marker section
From point 2 ~ 16384
Output mode
1~1048575 cycles or infinite mode
Frequency Characteristics
Range
Sine
60MHz(max)
Square
25MHz(max)
Triangle, Ramp
1MHz
Resolution
1μHz
Accuracy Stability
±20 ppm
Aging
±1 ppm, per 1 year
Tolerance
≤1μHz
Output Characteristics(2
Amplitude Range
1mVpp to 10 Vpp (into 50Ω)
2mVpp to 20 Vpp (open-circuit)
Accuracy
±2% of setting ±1 mVpp
(at 1 kHz/into 50Ω without DC offset))
Resolution
0.1mV or 4 digits
Flatness
± 1% (0.1dB) ≦1MHz
± 3% (0.3dB) ≦50 MHz
± 10% (0.9dB) ≦160MHz
± 30% (3dB) ≦320MHz
(sinewave relative to 1 kHz/into 50Ω)
Units
Vpp, Vrms, dBm
Offset
Range
±5 Vpk ac +dc (into 50Ω)
±10Vpk ac +dc (Open circuit)
Accuracy
1% of setting + 5mV+ 0.5% of amplitude
Waveform Output
Impedance
50Ω typical (fixed)
> 10MΩ (output disabled)
Protection
Short-circuit protected
Overload relay automatically disables main output
Ground Isolation
42Vpk max
Sync Output
Range
TTL-compatible into>1kΩ
Impedance
50Ω standard
Ground Isolation
42Vpk max
Sine wave Characteristics(3)
Harmonic
distortion
–60 dBc DC～200kHz, Ampl>0.1 Vpp
–55 dBc 200kHz～1 MHz, Ampl>0.1 Vpp
–45 dBc 1MHz～10 MHz, Ampl＞0.1Vpp
–30 dBc 10MHz～320MHz, Ampl＞0.1Vpp
Total harmonic distortion
< 0.1% (Ampl>1Vpp)DC~100 kHz
Square wave Characteristics
Rise/Fall Time
<15ns
Overshoot
<5%
Asymmetry
1% of period +5 ns
Variable duty Cycle
0.01% to 99.99%(limited by the current frequency setting)
Jitter
20ppm+500ps(4)
Ramp Characteristics
Linearity
< 0.1% of peak output
Variable Symmetry
0% to 100%
Pulse Characteristics
Frequency
1uHz~25MHz
Pulse Width
≧20nS(limited by the current frequency setting)
Variable duty Cycle
0.01%~99.99%(limited by the current frequency setting)
Overshoot
<5%
Jitter
20ppm +500ps(4)
Pulse Generator
Amplitude
1mVpp to 2.5 Vpp (into 50Ω)
2mVpp to 5 Vpp (open-circuit)
Offset
±1 Vpk ac +dc (into 50Ω)
±2Vpk ac +dc (Open circuit)
Frequency
1uHz~25MHz
Pulse Width
20nS~999.9ks(limited by the current frequency setting)
Variable duty Cycle
0.01%~99.99%(limited by the current frequency setting)
Leading and Trailing Edge Time(5)
10nS~20S(1ns resolution) (limited by the current frequency and pulse width settings)
Overshoot
<5%
Jitter
100ppm +500ps(4)
RF Generator
Arbitrary Functions
ARB function
Built-in
Sample Rate
200 MSa/s
Repetition Rate
100MHz
Waveform Length
16k points
Amplitude Resolution
14 bits
User-defined output section
From point 2~16384 (optional)
Jitter
20ppm +5ns
