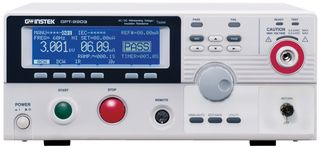

GW instek GPT-9901A Safety Testers (5kVAC, 500VA)

AC WITHSTANDING

Output-Voltage Range

0.100kV~ 5.000kV ac

Output-Voltage Resolution

2V/step

Output-Voltage Accuracy

± (1% of setting +5V) [no load]

Maximum Rated Load

500 VA (5kV/100mA)

Maximum Rated Current

100mA (0.5kV < V ≦ 5kV)

10mA (0.1kV ≦ V≦ 0.5kV)

Output-Voltage Waveform

Sine wave

Output-Voltage Frequency

50 Hz / 60 Hz selectable

Voltage regulation

± (1% of reading +5V) [full load → no load]

Voltmeter Accuracy

± (1% of reading+ 5V)

Current Measurement Range

0.001mA~100.0mA

Current Best Resolution

0.001mA / 0.01mA / 0.1mA

AC Current Measurement Accuracy

±(1.5% of reading +30 counts) when HISET < 1.11mA

±(1.5% of reading +3 counts) when HISET ≧ 1.11mA

Window Comparator Method

Yes

ARC Detect

Yes

RAMP (Ramp-Up Time)

0.1~999.9s

TIMER (Test Time)*

OFF, 0.5s~999.9s

Sweep Function*

Yes

GND

ON/OFF

MEMORY

Single Step Memory

MANU : 100 blocks

Automatic Testing Memory

AUTO : 100 blocks, menu per auto : 16

INTERFACE

Rear Output

Standard

RS232

Standard

USB (Device)

Standard

GPIB

Option

Remote Terminal (Front)

Standard

SIGNAL IO

Standard

General

DISPLY

240 x 64 dot matrix LED back light LCD

POWER SOURCE

AC100V/120V/220V/230V ±10%, 50/60Hz

POWER CONSUMPTION

1000VA max.

DIMENSIONS & WEIGHT

330(W) x 148(H) x 587(D) mm (GPT-9904/9903),

330(W) x 148(H) x 482(D) mm (GPT-9902A/9901A)

approx.27kg(Max)
