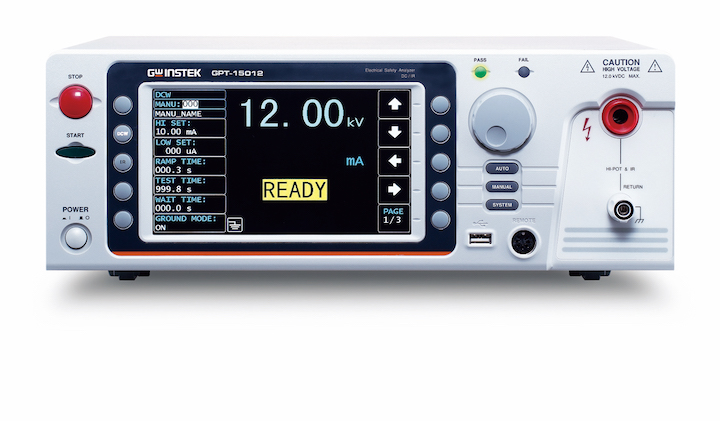

GW INSTEK GPT-15012 ເຄື່ອງວິເຄາະຄວາມປອດໄພທາງໄຟຟ້າ (DC 12kV / IR 5kV)
DC WITHSTANDING
Output-Voltage Range: 0.050kV~12.00kV
Output-Voltage Resolution: 1V
Output-Voltage Accuracy: ±(1% of setting+5V)[no load]
Maximum Rated Load: 120W(12kV/10mA)
Maximum Rated Current: 10mA(0.5kV<V≦12kV);2m (0.05kV≦V≦0.5kV)
Voltage Regulation: ±(1%+5V)[maximum rated load→no load]
Voltmeter Accuracy: ±(1%ofreading+5V)
Current Measurement Range: 1μA~10.00mA
Current Best Resolution: 0.1μA/1μA/10μA
Current Measurement Accuracy:
±(1.5% of reading+3μA)when I Reading<1mA
±(1.5% of reading+30μA)when I Reading≧1mA
Current Offset: 5μA Maximum
Window Comparator Method: Yes
ARC Detect: Yes
RAMP UP(Rise Time): 0.1s~999.9s
RAMP DOWN(Fall Time): 0.0s~999.9s
TIMER(Test Time): OFF,0.3s~999.9s
TIMER Accuracy: ±(100ppm+20ms)
WAIT TIME: 0.0s~999.9s
GND: ON/OFF
INSULATION RESISTANCE
Output Voltage: 50V~5000Vdc
Output-Voltage Resolution: 50V
Output-Voltage Accuracy: ±(1%ofsetting+5V)[no load]
Resistance Display
Resistance Measurement
TestVoltage/MeasurementRange/Accuracy
50V≦V≦450V
0.1MΩ~1MΩ：±(5% of reading+3 count)
1.1MΩ~50MΩ：±(5% of reading+ 1 count)
50.1MΩ~2GΩ：±(10% of reading+ 1 count)
500V≦V≦1200V
0.1MΩ~1MΩ：±(5% of reading+3 count)
1.1MΩ~500MΩ：±(5% of reading+1 count)
500.1MΩ~9.999GΩ：±(10% of reading + 1count)
10GΩ~50GΩ：±(20% of reading+ 1 count)
1250V≦V≦5000V
0.1MΩ~1MΩ：±(5% of reading +3 count)
1.1MΩ~500MΩ：±(5% of reading+1 count)
500.1MΩ~9.999GΩ：±(10% of reading+1 count)
10GΩ~50GΩ：±(15% of reading+1 count)*
Voltage Regulation: ±(1%+5V)[maximum rated load→no load]
Voltmeter Accuracy: ±(1% of reading+5V)
Short-CircuitCurrent: 10mA max.
Output Impedance: 2kΩ
Window Comparator Method: Yes
RAM PUP(Rise Time): 0.1s~999.9s
RAMP DOWN(Fall Time): 0.0s~999.9s
TIMER(Test Time): OFF,0.3s~999.9s
TIMER Accuracy: ±(100ppm+20ms)
WAIT TIME: 0.0s~999.9s
GND: ON/OFF
MEMORY
Single Step Memory: MANU：100blocks
Automatic Testing Memory: AUTO: 100 blocks,manu per auto：10
INTERFACE
Front Panel: USBhost,REMOTE
Rear Panel: RS-232C,USBdevice,Signal I/O,RearOutput
Option: GPIB,LAN
DISPLAY: 7”colorLCD
POWER SOURCE: AC100V~240 ±10%,50Hz/60Hz;Power consumption: 400VAmax.
DIMENSION & WEIGHT: 380(W)x148(H)x492(D)mm;Approx.9.8kg
