| DC OUTPUT | ||
|
Output Volts (V)
|
Output Amps (A)
|
|
|

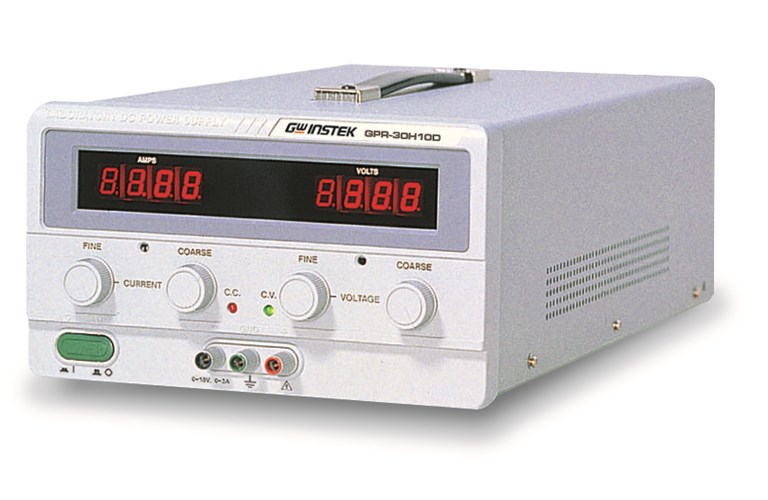

GPR-0830HD
|
0 ~ 8
|
0 ~ 30
|
| CONSTANT VOLTAGE OPERATION | ||
| Regulation | Line regulation < 0.01% + 3mV Load regulation <0.01% + 5mV (<10A) Load regulation < 0.02% + 5mV (>10A) |
|
| Ripple & Noise | < 1mVrms (5Hz ~ 1MHz) | |
| Recovery Time | < 100μS ( 50% load change, minimum load 0.5A ) | |
| Output range | 0 to rating voltage continuously adjustable | |
| CONSTANT CURRENT OPERATION | ||
| Regulation | Line regulation < 0.2% + 3mA Load regulation <0.2% + 5mA |
|
| Ripple Current | < 5mArms (< 20A) < 10mArms (< 30A) < 20mArms (< 50A) |
|
| Output Range | 0 to rating current continuously adjustable | |
| METER | ||
| Type | 3 1/2 Digit 0.5" LED Display | |
| Accuracy | ±( 0.5% of rdg + 2 digits ) | |
| INSULATION | ||
| Chassis and Terminal | 100MΩ or above (DC 1000V) | |
| Chassis and AC Cord | 100MΩ or above (DC 1000V) | |
| POWER SOURCE | ||
| AC 100V/120V/220V/240V±10%, 50/60Hz | ||
| ACCESSORIES | ||
| User manual x 1 Power cord x 1 Test lead GTL-105 x 1 (<3A) or GTL-104 x 1 (≦10A) or Not available (>10A) |
||
| DIMENSIONS & WEIGHT | ||
| 225(W) x 145(H) x 420(D)mm Approx. 18.5kg |
||
