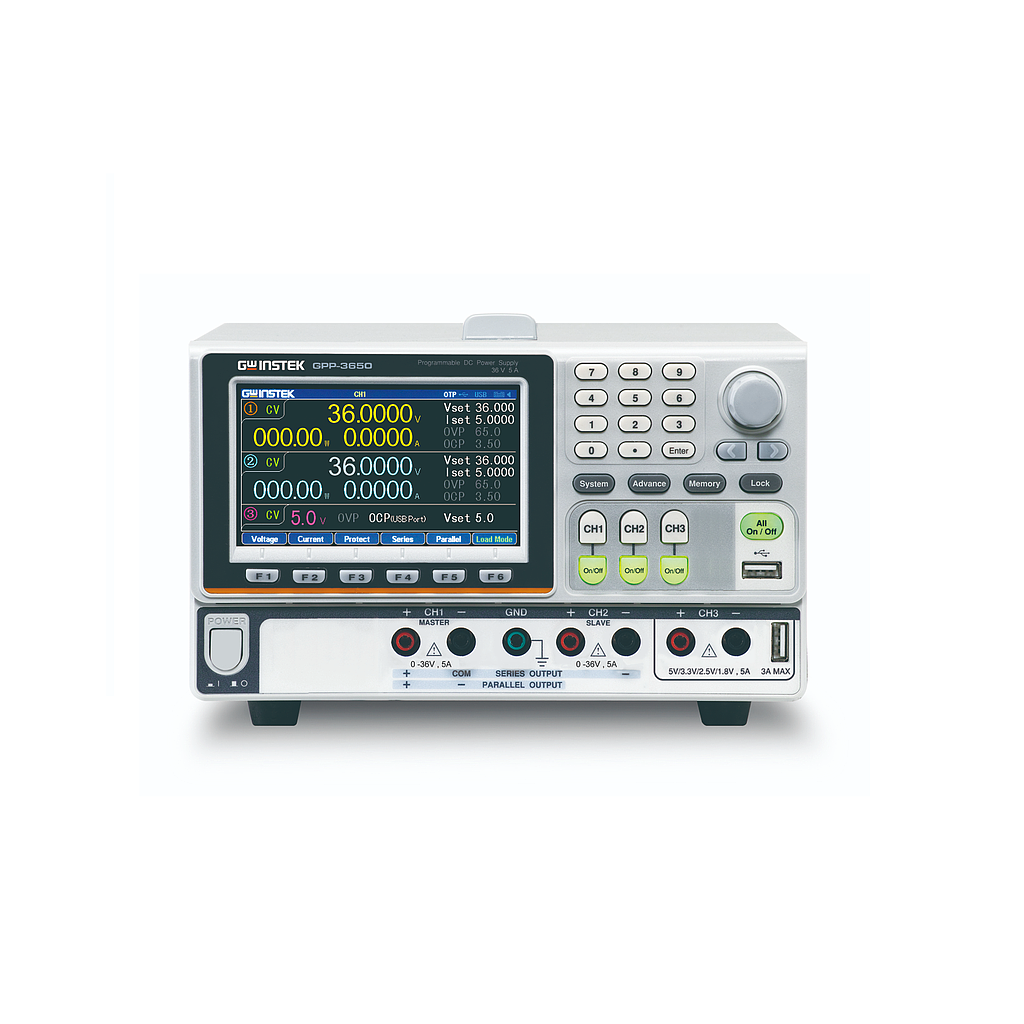

GW INSTEK GPP-3650 + LAN/GPIB ການສະຫນອງພະລັງງານ DC ທີ່ສາມາດວາງແຜນໄດ້ Triple-Channel (3CH, 385W)
Included: LAN/GPIB
Output Mode:
Number of Channel: CH1, CH2, CH3
CH1/ CH2/ CH3
Voltage: 0 ~ 36.000V/ 0 ~ 36.000V/ 1.8V/2.5V/3.3V/5.0V, ±5%
Current: 0 ~ 5.0000A/ 0 ~ 5.0000A/ 5A (USB Port 3A)
Tracking Series Voltage / Current (CH1,CH2/ CH3): 0 ~ 72.000V / 0 ~ 5.0000A/ -
Tracking Parallel Voltage / Current (CH1,CH2/ CH3): 0 ~ 36.000V / 0 ~ 10.0000A/ -
Constant Voltage Operation
CH1, CH2/ CH3
Line Regulation: ≤ 0.01% + 3mV/ ≤ 3mV
Load regulation: ≤ 0.01% + 5mV (rating current ≤ 10A/ ≤ 5mV
Ripple & noise (5Hz-1MHz): ≤1mVrms/ ≤ 2mVrms
Transient recovery time: ≤100µs (50% load change，minimum load 0.5A
Temperature coefficient: ≤ 300ppm/°C
Constant Current Operation
Line Regulation: ≤ 0.01% + 3mA
Load regulation: ≤ 0.01% + 3mA
Ripple & noise: ≤ 2mArms
DC Load Mode: CV Mode, CC Mode, CR Mode
General
Operation Environment:
Indoor use, Altitude: ≤ 2000m
Ambient temperature: 0 ~ 40°C
Relative humidity: ≤ 80%
Storage Environment:
TEMPERATURE: -10°C ~ 70 °C
HUMIDITY: ≤70%
Power Input: AC 100V/120V/220V/230V±10%, 50/60Hz
Power Consumption: 900VA, 680W
Accessories: CD User manual x1, Quick Start manual x1, Power Code x1, Test lead: GTL-104A x 3, (Europe) Test lead: GTL-204A x 3, GTL-201A x1
Dimensions: 213 (W) x 145 (H) x 362 (D) mm
Weight: Approx. 10kg
Standard: RS-232, USB; Optional: LAN or GPIB+LAN
