GW INSTEK GOS-630FC ອະນາລັອກ Oscilloscopes | EMIN.COM.LA

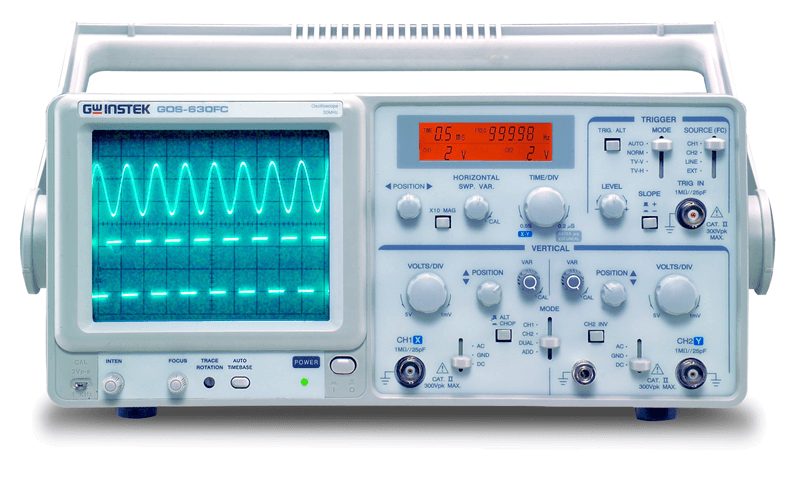

GW INSTEK GOS-630FC ອະນາລັອກ Oscilloscopes

Name: GW INSTEK GOS-630FC ອະນາລັອກ Oscilloscopes
Brand: GW INSTEK

ຜູ້ຜະລິດGW INSTEK(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelGOS-630FC

ຕົ້ນກຳເນີດChina

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

VERTICAL SYSTEM
Sensitivity	1mV ～ 5V/div , 12 steps in 1-2-5 sequence
Accuracy	≦3%, (1mV/div, 2mV/div: 5%)
Vernier Vertical Sensitivity	≦1/2.5 of panel-indicated value
Bandwidth	DC～30MHz (1mV/div, 2mV/div: DC～7MHz)
Rise Time	Approx. 11.7ns (1mV/div, 2mV/div: Approx. 50ns)
Input Impedance	Approx. 1MΩ // 25pF
Square Wave Characteristics	Overshoot : 5% ( At 10mV/div range)
Linearity	<±0.1div of amplitude change
Vertical Modes	CH1, CH2, DUAL (ALT/CHOP), ADD
Chopping Repetition Frequency	Approx. 250kHz
Input Coupling	AC, DC, GND
Maximum Input Voltage	CAT II 300V(DC+ACpeak)
Common Mode Rejection Ratio	50:1 or better at 50kHz sinusoidal wave
Isolation Between Channels	>1000:1at 50kHz, >30:1at 30MHz(at 5mv/div Range)
CH1 Signal Output	At least 20 mV/div at 50Ω terminal, frequency at least 50Hz to 5MHz
TRIGGERING
Triggering Source	CH1, CH2, ALT, LINE, EXT
Coupling	AC : 20Hz to full bandwidth
Slope	+ / -
Sensitivity	20Hz ~ 2MHz: 0.5div, TRIG-ALT: 2div, EXT: 200mV 2MHz ~ 30MHz: 1.5div, TRIG-ALT: 3div, EXT: 800mV TV: Sync pulse more than 1 div (EXT: 1V)
Triggering Modes	AUTO , NORM , TV-V , TV-H
EXT TRIGGERING SIGNAL INPUT
Input Impedance	Approx. 1MΩ // 25pF
Maximum Input Voltage	CAT II 300V(DC+AC peak)
HORIZIONAL SYSTEM
Sweep Time	0.2μs ~ 0.5s/div, 20 steps in 1-2-5 sequence
Sweep Time Accuracy	±3%
Vernier Sweep Time Control	≦ 1/2.5 of panel-indicated value
Sweep Magnification	10 times
×10MAG Sweep Time Accuracy	±5% (20ns ~ 50ns/div are uncalibrated)
Linearity	±3%, ×10MAG:±5% (20ns/div and 50ns/div are uncalibrated)
X-Y MODE
Sensitivity	Same as vertical axis
Bandwidth	DC to at least 500kHz
X-Y Phase Difference	≦3° at DC ～50kHz
Z AXIS
Sensitivity	5 Vpp (Positive-going signal decreases intensity)
Bandwidth	DC ～ 2MHz
Input Resistance	Approx. 47kΩ
Maximum Input Voltage	CAI II 30V(DC+AC peak)
CALIBRATION VOLTAGE
Waveform	Positive-going Square wave
Frequency	Approx. 1 kHz
Duty Ratio	Within 48:52
Output Voltage	2Vpp ±2%
Output Impedance	Approx. 1 kΩ
FREQUENCY COUNTER
Display Digits	Max. 5-digits decimal
Frequency Range	50Hz ~ 30MHz
Accuracy	±0.05%: 50Hz ~ 1kHz, ±0.02%: 1kHz ~ 30MHz
Measuring Sensitivity	> 2div
LCD
Display	VOLT/div, TIME/div, X-Y Mode, Frequency
Backlight	Orange
CRT
Type	6-inch rectangular type, internal graticule
Phosphor & Acceleration Voltage	P 31 & Approx. 2kV
Effective Screen Size	8 × 10 div (1 div = 10mm (0.39in))
Graticule	Internal
Trace Rotation	Provided
POWER SOURCE
Line Voltage	AC 115V, 230V ±15% selectable, 50Hz/ 60Hz
STORAGE ENVIRONMENT
Temperature	-10℃ to 70℃
Humidity	70%RH (Max.)
DIMENSIONS & WEIGHT
	310(W) x 150(H) x 455(D) mm; Approx. 8.2kg

Warranty: 12months
Manufacturer:Gwinstek- Taiwan
Origin: China

VERTICAL SYSTEM
Sensitivity	1mV ～ 5V/div , 12 steps in 1-2-5 sequence
Accuracy	≦3%, (1mV/div, 2mV/div: 5%)
Vernier Vertical Sensitivity	≦1/2.5 of panel-indicated value
Bandwidth	DC～30MHz (1mV/div, 2mV/div: DC～7MHz)
Rise Time	Approx. 11.7ns (1mV/div, 2mV/div: Approx. 50ns)
Input Impedance	Approx. 1MΩ // 25pF
Square Wave Characteristics	Overshoot : 5% ( At 10mV/div range)
Linearity	<±0.1div of amplitude change
Vertical Modes	CH1, CH2, DUAL (ALT/CHOP), ADD
Chopping Repetition Frequency	Approx. 250kHz
Input Coupling	AC, DC, GND
Maximum Input Voltage	CAT II 300V(DC+ACpeak)
Common Mode Rejection Ratio	50:1 or better at 50kHz sinusoidal wave
Isolation Between Channels	>1000:1at 50kHz, >30:1at 30MHz(at 5mv/div Range)
CH1 Signal Output	At least 20 mV/div at 50Ω terminal, frequency at least 50Hz to 5MHz
TRIGGERING
Triggering Source	CH1, CH2, ALT, LINE, EXT
Coupling	AC : 20Hz to full bandwidth
Slope	+ / -
Sensitivity	20Hz ~ 2MHz: 0.5div, TRIG-ALT: 2div, EXT: 200mV 2MHz ~ 30MHz: 1.5div, TRIG-ALT: 3div, EXT: 800mV TV: Sync pulse more than 1 div (EXT: 1V)
Triggering Modes	AUTO , NORM , TV-V , TV-H
EXT TRIGGERING SIGNAL INPUT
Input Impedance	Approx. 1MΩ // 25pF
Maximum Input Voltage	CAT II 300V(DC+AC peak)
HORIZIONAL SYSTEM
Sweep Time	0.2μs ~ 0.5s/div, 20 steps in 1-2-5 sequence
Sweep Time Accuracy	±3%
Vernier Sweep Time Control	≦ 1/2.5 of panel-indicated value
Sweep Magnification	10 times
×10MAG Sweep Time Accuracy	±5% (20ns ~ 50ns/div are uncalibrated)
Linearity	±3%, ×10MAG:±5% (20ns/div and 50ns/div are uncalibrated)
X-Y MODE
Sensitivity	Same as vertical axis
Bandwidth	DC to at least 500kHz
X-Y Phase Difference	≦3° at DC ～50kHz
Z AXIS
Sensitivity	5 Vpp (Positive-going signal decreases intensity)
Bandwidth	DC ～ 2MHz
Input Resistance	Approx. 47kΩ
Maximum Input Voltage	CAI II 30V(DC+AC peak)
CALIBRATION VOLTAGE
Waveform	Positive-going Square wave
Frequency	Approx. 1 kHz
Duty Ratio	Within 48:52
Output Voltage	2Vpp ±2%
Output Impedance	Approx. 1 kΩ
FREQUENCY COUNTER
Display Digits	Max. 5-digits decimal
Frequency Range	50Hz ~ 30MHz
Accuracy	±0.05%: 50Hz ~ 1kHz, ±0.02%: 1kHz ~ 30MHz
Measuring Sensitivity	> 2div
LCD
Display	VOLT/div, TIME/div, X-Y Mode, Frequency
Backlight	Orange
CRT
Type	6-inch rectangular type, internal graticule
Phosphor & Acceleration Voltage	P 31 & Approx. 2kV
Effective Screen Size	8 × 10 div (1 div = 10mm (0.39in))
Graticule	Internal
Trace Rotation	Provided
POWER SOURCE
Line Voltage	AC 115V, 230V ±15% selectable, 50Hz/ 60Hz
STORAGE ENVIRONMENT
Temperature	-10℃ to 70℃
Humidity	70%RH (Max.)
DIMENSIONS & WEIGHT
	310(W) x 150(H) x 455(D) mm; Approx. 8.2kg
