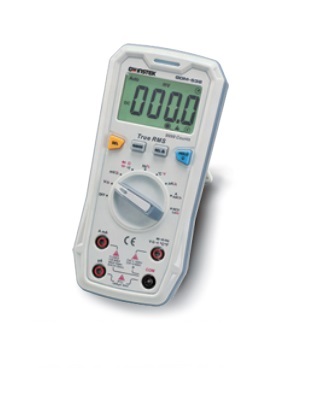

GW INSTEK GDM-532 ມືຖື Digital Multimeter
DC VOLTAGE
Range: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 999.9V
Best Accuracy: ±(0.5%rdg + 3 digits)
Input Impedance: 10 MΩ (At mV range : 3GΩ)
AC VOLTAGE
Range: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 999.9V
Best Accuracy: ±(0.8%rdg + 3 digits)
Frequency Response: 45Hz-400Hz
Input Impedance: 10 MΩ
DC CURRENT
Range: 999.9µA, 999.9mA, 9.999A
Best Accuracy: ±(0.8%rdg + 3 digits)
AC CURRENT
Range: 999.9µA, 999.9mA, 9.999A
Best Accuracy: ±(1.0% rdg + 3 digits)
RESISTANCE
Range: 999.9Ω, 9.999kΩ, 99.99kΩ, 999.9kΩ, 9.999MΩ, 99.99MΩ
Best Accuracy: ±(0.8% rdg + 2 digits)
CONTINUITY BEEPER
Buzzer sounds if conductance less than 30Ω
DIODE TEST
Open Circuit Voltage: 3.3V (Approx.)
CAPACITANCE
Range: 9.999nF, 99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF, 9.999mF
Best Accuracy: ±(4.0% rdg + 5 digits)
FREQUENCY
Range: 99.99Hz ~ 9.999MHz
Best Accuracy: ±(0.1%rdg + 5 digits)
TEMPERATURE
Range: -40ºC ~ 1000ºC / -40ºF ~ 1832ºF
Best Accuracy: ±(1.0% rdg + 5 ºC); ±(1.5%rdg + 5 ºF);
SPECIAL FUNCTION
Auto Ranging; True RMS;
Display Backlight
LCD DISPLAY
9999 counts
POWER SOURCE
1.5V AAA x 3
DIMENSIONS & WEIGHT
81(W) x 169(H) x 46(D) mm, Approx. 400g
ACCESSORIES
Battery, User manual, Test leads, K-type thermocouple
