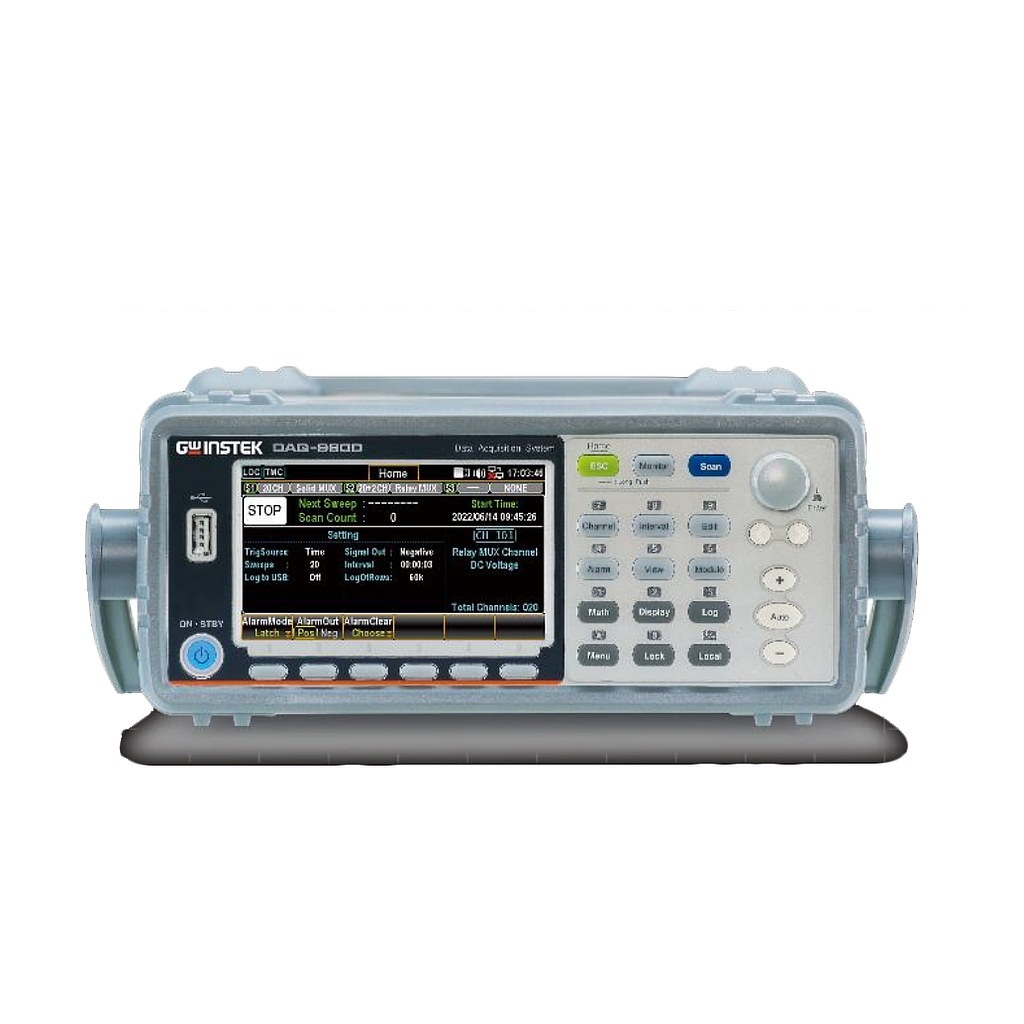

GW INSTEK DAQ-9600 20-Channel Universal Multiplexer (Solid State Relay) (20 channel)
DISPLAY: 4.3" Color TFT LCD
SLOT: 3
Sample Rate: 10k SPS (max.)
Internal memory: 100k_Sample (nonvolatile)
Measurement Characteristics:
DC Voltage: Range: 100mV to 600V; Resolution: 0.1µV to 1mV; Accuracy: 0.0035%
AC Voltage: Range: 100mV to 300V; Resolution: 0.1µV to 1mV; Accuracy: 0.05%
Resistance: Range: 100 Ω to 1000 MΩ; Resolution: 0.1 mΩ to 1000 Ω; Accuracy: 0.01%
Frequency: Range: 3Hz to 300kHz; Accuracy: 0.01%
DC Current: Range: 1µA to 2A; Resolution: 1pA to 1µA; Accuracy: 0.05%
AC Current: Range: 100µA to 2A; Resolution: 100pA to 1µA; Accuracy: 0.10%
Capacitance: Range: 1nF to 100µF; Resolution: 0.0001nF to 0.01µF; Accuracy: 2%
Temperature (TC): Range: -200 ºC to 1820 ºC; Resolution: 0.002 ºC to 0.01 ºC; Accuracy: 0.2 ºC
Temperature (TM): Range: -80 ºC to 150 ºC; Resolution: 0.01 ºC; Accuracy: 0.01 ºC
Temperature (RTD): Range: -200 ºC to 600 ºC; Resolution: 0.002 ºC; Accuracy: 0.06 ºC
General Information
USB storage : Available
Interface Digital: I/O, LAN and USB host/device
Optional Interface: mini GPIB
Power Source: AC 100V/120V/220V/240V±10%
Dimensions & Weight: 267(W) x 107(H) x 380 (D) mm; Approx. 4.5kg
