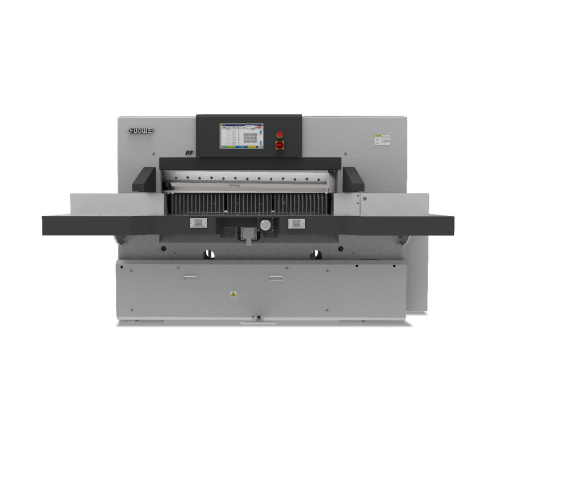

Guowei 260F+ ເຄື່ອງຕັດເຈ້ຍດ້ວຍຄອມພິວເຕີ (260cm)

Cutting width: 260 cm / 102.4"

Max. cutting height without assistance pressing plate: 12 cm / 4.7"

Max. cutting depth: 260 cm / 102.4"

Min. cutting depth without assistance pressing plate: 6.5 cm / 2.6"

Extended length of working table: 75 cm / 29.5"

Height of working table: 90 cm / 35.4"

Machine width including side working table: 416 cm / 163.8"

Total length of working table: 405 cm / 157.5"

Cutting speed: 30 times/min

Max. paper pressure: 70000 N

Power of main motor: 7.5 kW

Motor for paper feeding: 1.1 kW

Air pump: 0.75 × 4 kW

Machine weight: 13000 kg

Overall dimension (L×W×H): 413 × 185 × 292 cm

Blade specifications (L×W×H): 280 × 12.7 × 1.27 cm

Imported ball lead screw: Standard

Imported double guide-rail slot-less working table: Standard

Main and assistance working table with air ball and chrome-plated: Standard

IR photoelectric protection and hands operating protection: Standard

Ejecting device for cutting stick: Standard

Inside electronic knife locker: Standard

Safe and convenient knife replacement system: Standard

Overloading protection device for cutting: Standard

Flat worm speed reducer transmission: Standard

Optical knife alignment: Standard

PLC control system: Standard

Imported hydraulic system: Standard

Imported electric components: Standard

Enlarge side working table: Optional

Soft pressure: Without

Optimize function: Without
