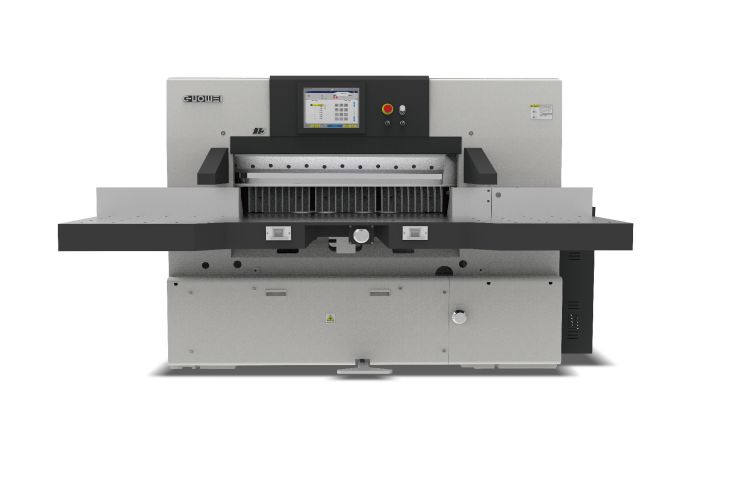

Guowei 186F ເຄື່ອງຕັດເຈ້ຍດ້ວຍຄອມພິວເຕີ (186cm)

Cutting width: 186 cm / 73.2"

Max. cutting height without assistance pressing plate: 16.5 cm / 6.5"

Max. cutting depth: 200 cm / 78.8"

Min. cutting depth without assistance pressing plate: 3 cm / 1.2"

Extended length of working table: 75 cm / 29.5"

Height of working table: 89–92 cm / 35"–36.2"

Machine width including side working table: 342 cm / 135"

Total length of working table: 327 cm / 129"

Cutting speed: 39 times/min

Max. paper pressure: 65000 N

Power of main motor: 5.5 kW

Motor for paper feeding: 1.0 kW

Air pump: 0.75 × 3 kW

Machine weight: 6800 kg

Overall dimension (L×W×H): 340 × 182 × 230 cm

Blade specifications (L×W×H): 212 × 16 × 1.37 cm

Imported ball lead screw: Standard

Imported double guide-rail slot-less working table: Standard

Main and assistance working table with air ball and chrome-plated: Standard

IR photoelectric protection and hands operating protection: Standard

Ejecting device for cutting stick: Standard

Inside electronic knife locker: Standard

Safe and convenient knife replacement system: Standard

Overloading protection device for cutting: Standard

Flat worm speed reducer transmission: Standard

Optical knife alignment: Standard

PLC control system: Standard

Imported hydraulic system: Standard

Imported electric components: Standard

Enlarge side working table: Optional

Soft pressure: Standard

Optimize function: Standard
