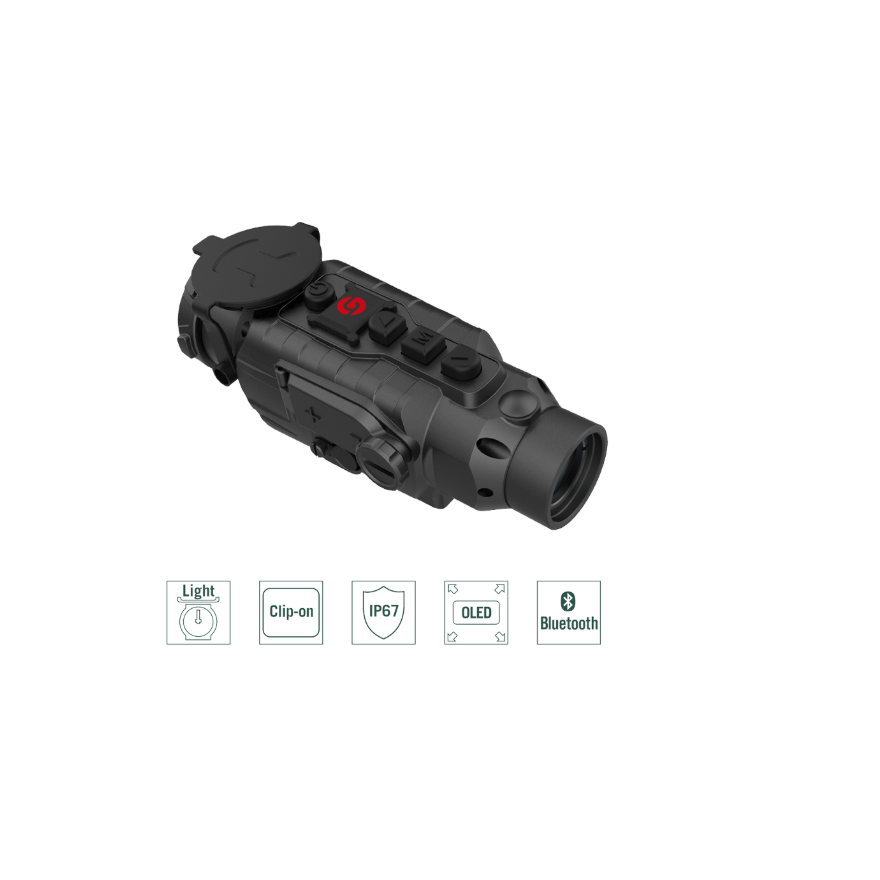

Guide TA435 Clip-on ໄຟລ໌ແນບຮູບພາບຄວາມຮ້ອນ (8μm～14μm; 10.66°×8.0°)
Detector
Resolution: 400×300@17μm
Spectral Range: 8μm～14μm
NETD: ≤50mk@25°C /F1.0
Focus lens
Focal Length: 35mm F1.2
Focusing: Manual focus
FOV: 10.66°×8.0°
Image Processing
Frame Rate: 50Hz（PAL）/60Hz（NSTC）
Digital Zoom: 2×, 4×
Auto Tracking: Hotspot track
Calibration: Automatic calibration/ Manual calibration(shutter) /Manual scene compensation
Color Palettes: Black hot, white hot, red hot, green hot
Contrast/Brightness: Adjustable
Power Systems
Battery: CR123A×2/ICR16340×2
Charging: On External charger
Working Time: Continuous Operating over 3 hours@25°C
Interface
4-Pin LEMO Interface: Analog & video output
Display system
OLED: Colorful 0.39 inch OLED screen 1024×768
Pupil Distance: 10mm
Pupil Caliber: 20mm
Video Format: PAL/NTSC
Digital Zoom: 1
View Finder: Monocular display(×2) ±5 adjustable diopter
Environment parameter
Operating Temperature: -30°C-50°C
Storage Temperature: -45°C-70°C
Humidity: Working and storage 10% ～ 95%, Non condensing
Impact: 500G/1ms
IP level: IP67
Certificate: RoHS Certificate/CE Certificate/FCC Certificate
Physical Characteristics
Weight:≤400g
Size: 150mm×52mm×57mm
Package
Standard: Thermal infrared imager, User manual, Blinder, Warranty
Optional: Adapter ring, External eyepiece,
CR123A×2 (unrechargeable) battery, ICR16340×2(rechargeable) battery, Charger, Bluetooth remote controller, Lemo video cable, Picatinny rail
Cover ring adapter A： Compatible with 38/40/42/44/46mm;
Cover ring adapter B： Compatible with 48/50/52/54mm;
Cover ring adapter C： Compatible with 56/58/60/62/64mm;
Detection Range
Human： 1.8m×0.5m: 1000m
Vehicle： 2.3m×2.3m: 2400m
Recognition Range
Human： 1.8m×0.5m: 500m
Vehicle： 2.3m×2.3m: 1000m
