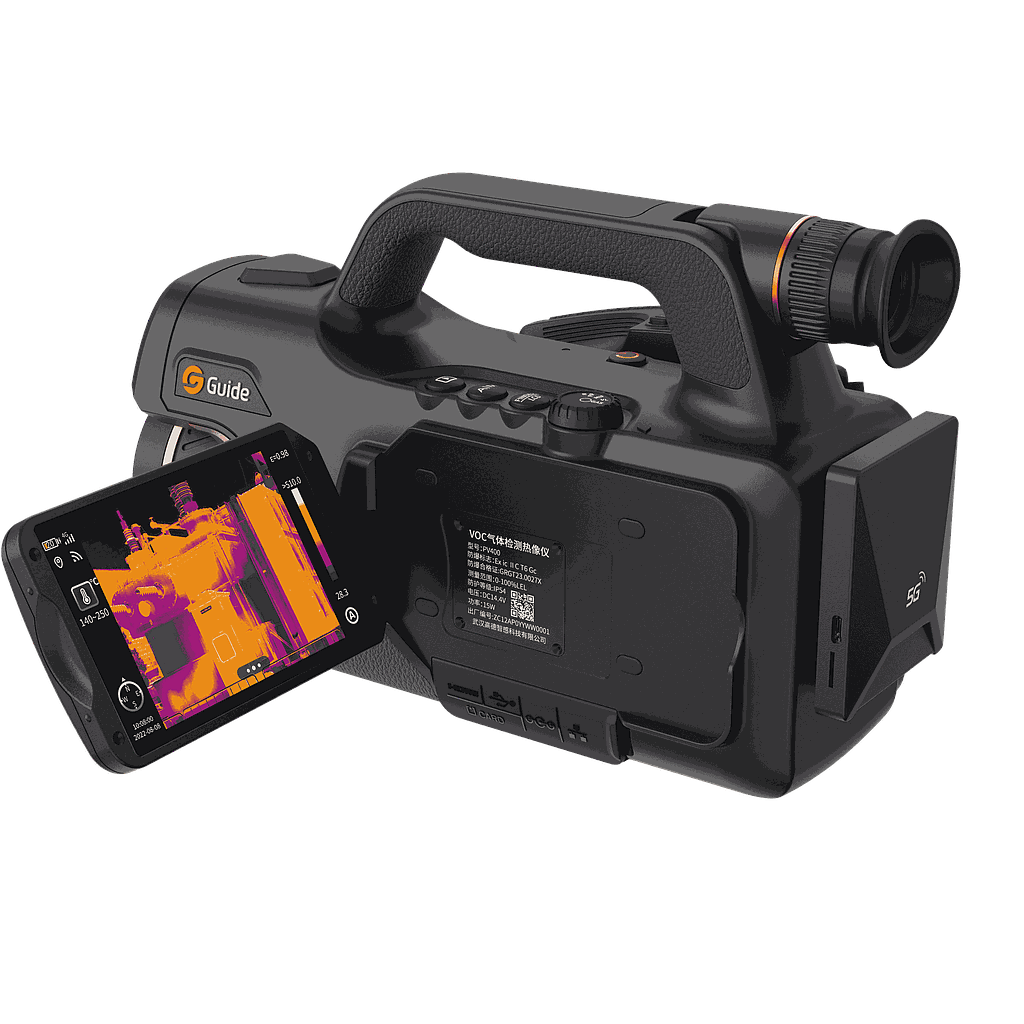

Guide PV400 VOCs Detection Thermal Camera (320×256@30μm; 50Hz; -40~60°C/350 °C, options lens)
Imaging and optics
Detector type: Cooled, HgCdTe/MCT, 3.2μm~3.5μm
Infrared resolution: 320×256@30μm
Super resolution: Yes, Upgrade to 640×512
NETD: Detector NETD≤10mK
Frame rate: 50Hz
Focal length: 23mm
Field of view: 24°×18°
IFOV: 1.3mrad
Min. object distance: 1m
D:S: 769:1
Focusing mode: Manual/Automatic
Digital zoom: 1x to 10x
Measurement and analysis
Measurement range: IR mode: -40~350 °C; Gas mode: -40 °C~60 °C
Measurement accuracy: ±2°C or ±2%, whichever is greater
Analyzed target: Supports adding up to 15 analyzed targets (including a maximum of 15 spots, 2 lines, 4 circles, and 4 rectangles)
Alarm: Full screen temperature threshold alarm (image, voice and flash)
Parameter settings: Emissivity, reflection temperature, target distance, humidity, atmospheric temperature, optical transmittance
Others: Customized physical button, OTA update
Image display
Display screen: 4.3’’ LCD, touch screen, 800×480
Eyepiece: OLED screen, 1024×768
Image mode: IR, VIS, MIF, PIP, Gas mode (support GDEMode)
Color palettes: 12: White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia
Image adjustment: Level span mode: Automatic, Semi-automatic, Manual
Digital camera: 8MP
Functions
Laser: Laser (Indication, Ranging 0.1m to 40m)
Recording function: Photo and Video (infrared & visible light)
Cloud Services: Available
Gas detection: Gas detection sensitivity: ≤ 0.4g/hr (CH4); Gas types: methane, ethane, propane, butane, pentane, hexane, heptane, octane, ethylene, propylene, isoprene, methanol, ethanol, butanone, benzene, toluene, xylene, ethylbenzene, etc
Storage and transmission
Storage media: Built-in (64 GB) and external SD card (128 GB and up to 256 GB)
Image storage: JPG with temp info
Video storage: MP4 format (without temp info) can be used to record audio synchronously; Irgd (with temp info)
External interface: USB-C, DC (12V) , SD card slot, Micro HDMI, RJ45, Tripod socket
WIFI: Yes, it can be connected to the mobile terminal for image and real-time video transmission
Cellular network: 5G module (optional)
Power system
Battery type: Lithium-ion rechargeable battery
Operating time: 4 hours
Charging mode: The device can be charged through desktop charger after shutdown.
Charging time: 90% of full charge in 2.5 hours, revealed by the status screen
Environmental parameters
Working temperature: -20°C to 50°C
IP rating: IP54
Certification: CE, FCC, RoHS, UN38.3, MSDS
Physical parameters
Hardware: Illuminator×2, Microphone, Speaker, Electronic Compass, GPS
Weight: 3.36kg (with battery)
Size: 297×167×204mm
Software kit: PC: ThermoTools; Mobile: Thermography (iOS/Android)
Standard: A device Lens front and back cover, Lithium-ion battery (2 pcs), Desktop charger, Power adapter, Adapter plug, USB-A to USB-C Cable, Micro HDMI to HDMI Cable, RJ45 Ethernet Patch Cable, SD card (128 GB), Wrist strap, Safety box, Quick Start Guide, Data download card, Certificate of approval, Factory certificate
Options: Lithium battery, Tripod, Carrying bag, 5G module,lens 10°, 15°
