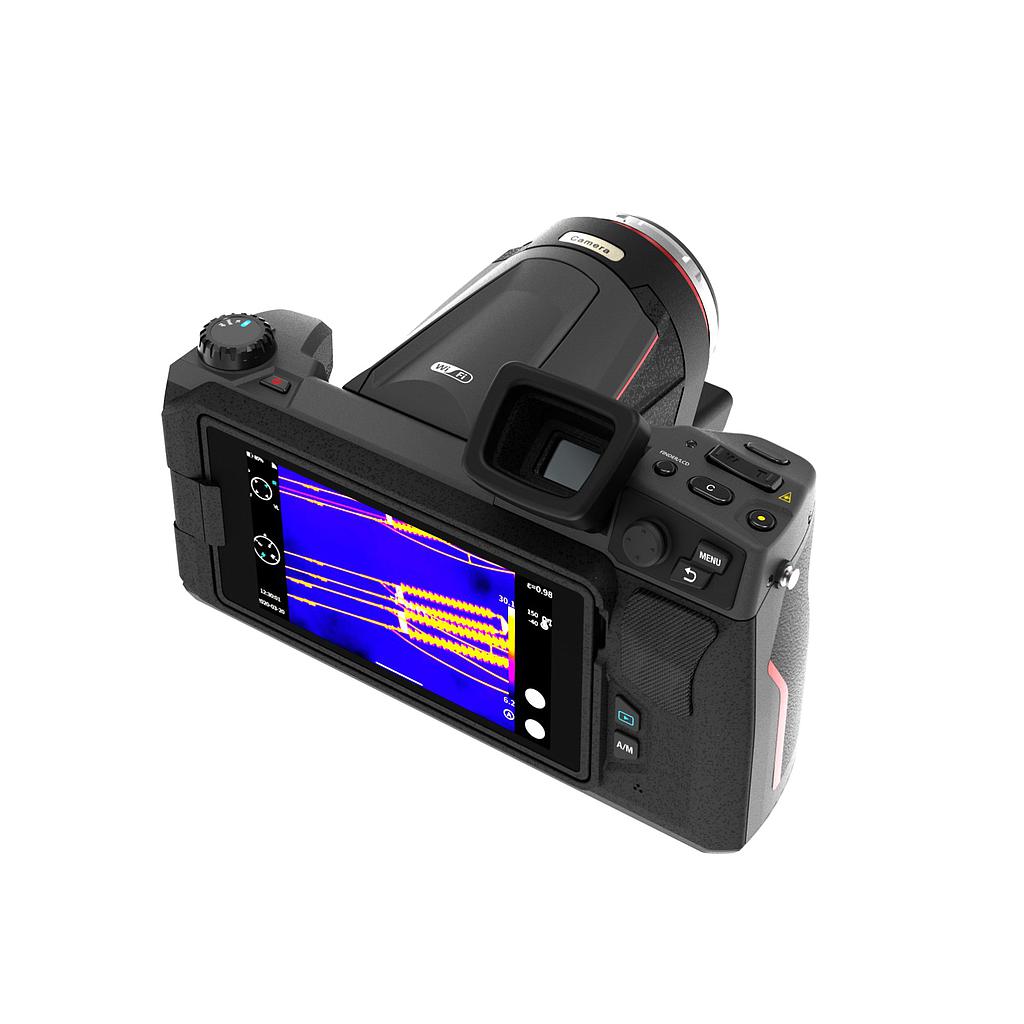

Guide PS800 ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນປະສິດທິພາບສູງ (1024x768; 30mk; IP54)
Imaging and optics
Detector type: VOx
Infrared resolution: 1024*768
Super resolution technology: Support, Upgrade to 2048*1536
Wavelength range: 7.5~14μm
Field angle: 25°*19°
Minimum object distance: 0.3m
Netd: ＜30mK
Infrared frame rate: 25Hz/9Hz
Focusing mode: Electric/manual
Digital zoom: 1.1~35 1.1~35
Shot recogniti: Auto/manual
Measurement and analysis
Measurement range: -40-150℃, 100-800℃ Automatic switching and external lens, extended to 2.000℃, The range of level 3 is: 700℃-2000℃
Measurement accuracy: ±1℃ or ±1%, whichever is greater (standard lens, ambient temperature 23℃±2℃, target temperature 20℃ to 60℃, distance within 3m)
Image displayed
Display screen: 5" LCD
Eyepiece: 1.280 * 960 LCOS screen
Digital camera: 1.300w
Image mode: IR, VIS, MIF and PIP
Image adjustment: Automatic, semi-automatic, manual
Palette: 8 colors, White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, customized
Storage and transmission
Storage medium: This unit and SD card
Image storage format: JPG with temp info
Video storage without temperature information: Mp4 format can be used to record audio synchronously
Video storage with temperature information: Irgd for temperature analysis
External interface: Type-C, DC (12V), SD card, Gigabit Ethernet, Micro HDMI, tripod interface
Laser: Laser, laser pointer which can be displayed on infrared image, laser ranging, laser focusing
Audio: Microphone (adjustable volume) Speaker (adjustable volume)
Wifi: Yes, it can be connected to the mobile terminal for data transmission
Gps: Available
Bluetooth: Available
4g/5: 4G
Power system
Battery type: Lithium-ion rechargeable battery
Battery working time: ≥3H
Power management: Timed shutdown and sleep mode
Charging mode: The device can be charged through desktop charger after shutdown.
Charging time: 90% of full charge in 2.5 hours
Environmental paraments
Working temperature: -20℃~50℃
Storage temperature: -40℃~70℃
Ip rating: IP54
Drop: 1.2m (with package)
Physical parameters
Weight: ≤1.5Kg (with battery)
Size: 206mm*169mm*135mm
Software kit: ThermoTools
Standard accessories: A device, lens cover, 2 lithium batteries, power adapter, adapter plug (5), TYPE-C to USB cable, HDMI cable, network cable;Quick Start Guide, Instructions, flash memory disk, SD card (64GB), shoulder strap, carrying case and factory certificate
Optional accessories: A lithium-ion battery, a carrying bag, a desktop charger, an expanded lens, a 4G module, a tripod
