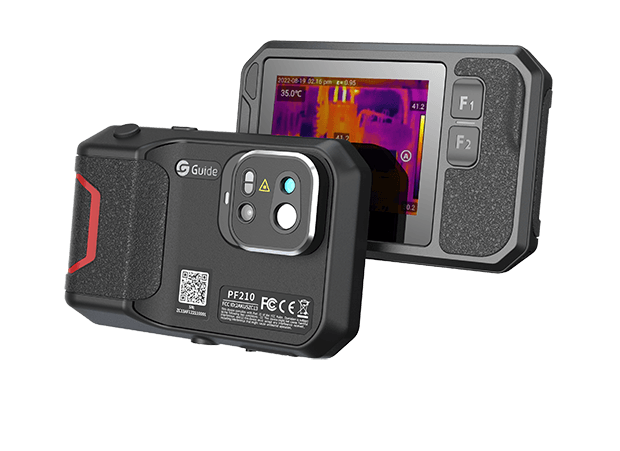

Guide PF210 ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນຂະຫນາດກະເປົ໋າ (256x192IR, -20℃ to 550℃)
Imaging and optics
Detector type:VOx, 7.5 to 14μm
Infrared resolution:256×192@12μm
NETD:45mK
Frame rate:25Hz/ 9Hz
Focal length:3.2mm
Field of view:56°×48°
IFOV:3.75mrad
Min. object distance:0.3 m
D:S: 266:1
Focusing mode:Focus-free
Digital zoom:1.1x to 8x
Measurement and analysis
Measurement range:Support auto-switching: -20°C to 150°C, 100°C to 550°C
Measurement accuracy:±2°C or ±2%, whichever is greater
Analyzed target:Spot×2 ( Include Center spot), Area×3
Alarm:Full screen temperature threshold alarm (image and flash)
Parameter settings:Emissivity, reflected temperature, target distance
Others:Customized physical button×2
Image display
Display screen:3.5" LCD
Image mode:IR, VIS, MIF and PIP
Color palettes:6: White Hot, Black Hot, Iron Red, Hot Iron, Rainbow, Arctic
Image adjustment:Level span mode: Automatic, Semi-automatic, Manual
Digital camera:5 MP
Functions
Laser:Laser (Indication, Ranging)
Recording function:Photo
Cloud Services:Available
Storage and transmission
Storage media:Built-in (16 GB)
Image storage:JPG with temp info
External interface:TYPE-C, UNC ¼"-20 (tripod mounting)
WIFI:Yes, it can be connected to the mobile terminal for image transmission
Power system
Battery type:Rechargeable lithium-ion battery, non-removable
Operating time:4 hours
Charging mode:TYPE-C charging; PC/portable charger; Capable of charging while using
Charging time:90% of full charge in 2.5 hours
Environmental parameters
Working temperature:-10°C to 50°C
IP rating:IP54
Drop:1m drop test
Certification:CE, FCC, ROHS, KC, Anatel, IP54, 1m drop test, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS
Physical parameters
Hardware:Illuminator
Weight:296g
Size:138×89×34mm
Software kit:PC: ThermoTools; Mobile: Thermography (iOS/Android)
Standard:A device, Wrist strap, Carrying bag, Quick Start Guide, Power adapter, Adapter plug, Type-C USB cable, Data download card, Certificate of approval
Options:Tripod
