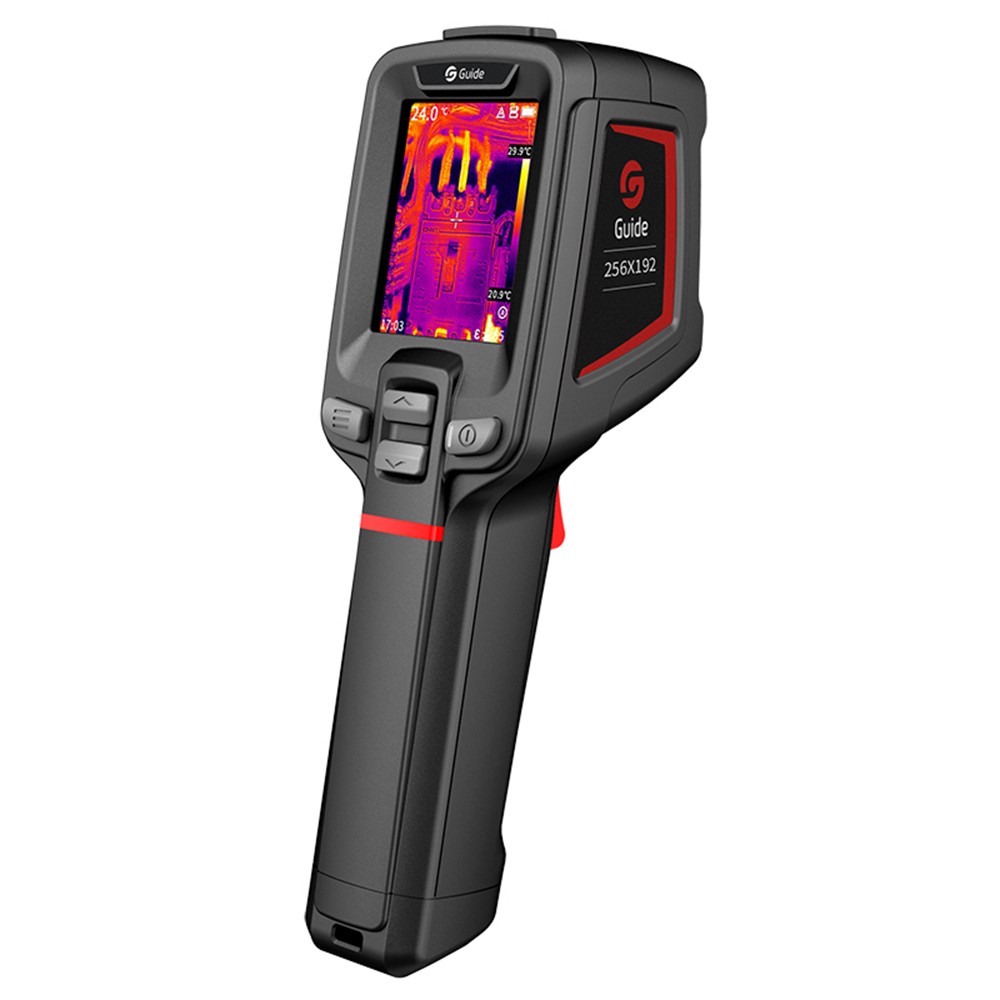

Guide PC210 ເຄື່ອງມືຄ້າຍຄືກ້ອງຖ່າຍຮູບຄວາມຮ້ອນ (-20~550℃; 3.75mrad; 256*192)
IR image & Optical
- Detector type: 256×192@12μm, VOx
- Spectral: 7.5~14μm
- Frame rate: 25Hz/9Hz
- Thermal sensitivity / NETD: 45mK
- Focal length: 3.2mm
- Field of view(FOV): 56°×48°
- Spatial resolution(IFOV): 3.75mrad
- Min focus distance: 0.3m
- D:S: 130:1
- Focus: Focus-free
Visible camera
- Resolution: 200W pixel, Resolution optional (240×320/1600×1200)
- Flashlight: Yes
Image display
- Display: 2.4" LCD screen
- Display resolution: 240×320
- Image model: IR, Visible, Picture-in-Picture, MIF
- Color palettes: 6:White Hot, Iron Red, Hot Iron, Arctic, Rainbow 1, Rainbow 2
Temperature Measurement
- Temperature range: -20°C-150°C, 100°C-550°C (Auto switching)
- Accuracy: ±2°C or ±2%, whichever is greater (target temp ≥0°C, ambient temp is 5°C~30°C)
Image Storage
- Storage media: TF card (Standard 16G, up to 32G)
- Image format: IR/MIF/PIP
Connections & Communications
- USB: TYPE-C, TF Card slot
- Laser: Yes
- Tripod interface: Yes
- PC IR Analysis Software: Yes
Power System
- Battery type: Rechargeable Li-ion battery
- Battery operating time: 16 hours
- Charging time: Internal charge, ≤2.5 hours
Environmental Parameters
- Operating temperature: -15°C~50°C
- Storage temperature: -40°C~70°C
- Encapsulation: IP54, 2-meter drop test
- Certification: CE/ROHS/FCC/PSC/KC/UN38.3/IP54
- Weight: about 375g
- Size: 194mm×61.5mm×76mm
Standard accessories:
- Charger + Adapter
- TYPE-C USB cable
- Wrist Strap
- Quickstart Guide
- Data Download Card
- 16G TF Card
