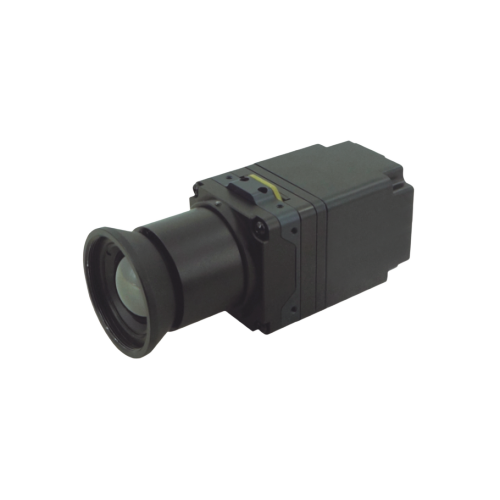

Guide OR2 ໂມດູນຄວາມຮ້ອນທົ່ວໄປສໍາລັບການວັດແທກອຸນຫະພູມ (-20°C~150°C)
IR Detector
Detector type: Uncooled VOx Micro bolometer
Resolution: 384x288
Pixel pitch: 25μm
Spectral range: 8μm-14μm
Lens
Minimum Focus: 19mm/8.8mm
Focus: Fixed Focus
FOV: 28.4°x21.5°/ 57.2°x44.5°
Measurement
Temperature Range: -20°C~150°C
Accuracy: ±2 or 2%
Image Storage Format: JPG
Video Storage Format: Standard H.264 compressed video
Ethernet
Function: Control and image transmission
Type: 100m
Network interface: RJ45
Video-streaming: RTSP
Software
Digital zoom: x2, x4
Compensation: Yes
Set-up Temperature Unit: Yes
Add Analysis Object: Point, line, rectangle
Alarm: Yes, cursor display
Time-lapse Video: Yes
Time-lapse Picture: Yes
Color palettes: 8
Power Supply
Input Power: 12VDC（low-power consumption）
Voltage: 9V~15V
Environmental
Operating Temperature Range: -10°C~50°C
Non-Operating Temperature Range: -40°C~70°C
Humidity: ≤95%
Vibration: 2g (IEC 60068-2-6)
Shock: 25g (IEC 60068-2-29)
Interfaces
Electrical Interface: RJ54，Power，SD card
Mechanical
Weight: 260g
Size (Without lens): 100mm x 45mm x 45mm
Certification: ROHS，CE
