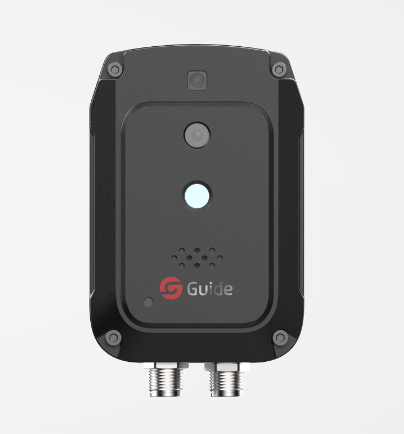

Guide NC200 ກ້ອງຖ່າຍພາບຄວາມຮ້ອນ (-20~550℃; 256*192;≤45mK@30℃)
Temperature measurement parameters
Measurement range Low temperature mode: -20 ℃ to 150 ℃, high temperature mode: -20℃ to 550℃
Measurement accuracy: ±2℃ or ±2% (whichever is greater)
Target setting: Up to 12 targets (spot, line, rectangle, polygon and circle) can be simultaneously measured at the same time
Cold/hot spot tracking: Available
Full-screen point temperature measuring: Available
Query and export of temperature measuring informati : Available
Visible light parameters
Sensor type: 1/2.7"CMOS
Maximum resolution: 1920x1080
Minimum illuminance: Color: 0.005lux
Visible light gain control :Auto/manual
Visible light noise reduction : 2D/3D noise reduction
Backlight compensation: Available
Wide dynamic: Available
Strong-light photoinhibition : Available
Image flip1: 180°/mirror image
Exposure compensation :Available
Visible light lens: Focal length, field angle, minimum focusing distance
Fill light : White light
Image parameter
Video compression standard: Switch between three standards H.265, H.264 and MJPEG
Image coding formats: JPEG
Protocol and storage
Network protocol: IPv4/IPv6, HTTP, SMTP, RTSP, TCP, DHCP, GB/T28181, MQTT, ONVIF (automatic search device, RTSP video stream and device control)
Local storage: 4G EMMC
System function
Language version: Chinese/English
Browser: Available
User management: It supports up to 20 users and multi-level user permission management; which is divided into three levels: root user, management group and user group
Fault detecti: Network interrupt detection; IP conflict detection; Illegal access; storage exception
Hardware interface
Network interface: One 100M/1,000m Ethernet port, POE (802.3 at)
Alarm interface: 1input and 1 output
Other interface: 1-channel RS485
Environmental parameters
Working temperature: -30℃ to +60℃
Working humidity: ≤ 95%, non-condensing
Encapsulation: IP67, TVs 6000V lightning protection and surge protection
Physical parameters
Product size: ≤105mm × 71mm × 30mm (length, width and thickness)
Net weight: 300g
Installation mode: Wall mounting/tripod mounting/magnetic mounting
