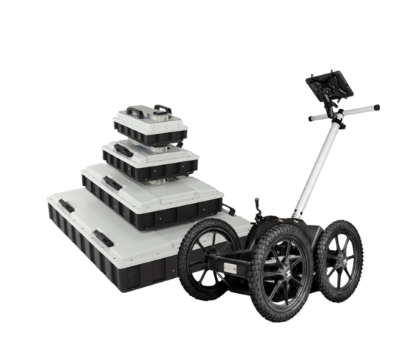

Guidelinegeo GX450 MALÅ Ground Explorer (Antenna center freq: 450 MHz)
ຜູ້ຜະລິດ: Guidelinegeo Model: GX450 - ຕິດຕໍ່ພົວພັນ
Controller
Processor: 1.6 GHz Intel Atom
Display: 1024 x 768 mm
OS: Linux
Memory: 8 GB compact Flash memory
Data output: 32 bit
Power supply: Internal 12 V/20.8 Ah Li-Ion
Charger
Power consumption: 1.3 – 2.0 A
Operating time: 8 – 10 h
Dimensions: 326 x 216 x 92 mm including handles, 326 x 216 x 52 mm excluding handles
Weight: 3.23 kg
Operating temp: - 20° to + 50° C or 0° to 120° F
Environmental: IP 65
Antennas
Technology: MALÅ Semi-Real-Time
Antenna center freq: 450 MHz
SNR: 101 dB
Scans/second: > 770, time window 300 ns
Survey speed: 275 [km/h] point distance 10 cm
Time window: 300 ns
Operating time: 5 h
Power supply: Interchangeable 12 V
Power consumption: 1.3 A
Dimensions: 430 x 360 x 180 mm
Weight: 5.5 kg
Operating temp: - 20° to + 50° C or 0° to 120° F
