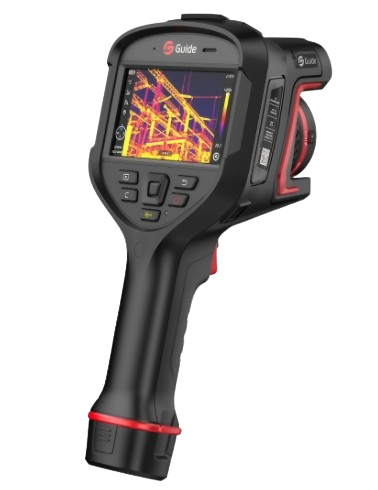

Guide H2S ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນອັດສະລິຍະ (25° × 19°, 256×192; -40℃~2000℃; option lens)
Imaging and Optics
Core technology: Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm SharpIR 2.0
Detector type: VOx, 7.5–14 μm
Infrared resolution: 256 × 192 @12 μm
Super resolution: Yes, upgrade to 512 × 384
NETD: 15 mK
Frame rate: 50 Hz / 9 Hz
Focal length: 6.8 mm
Field of view: 25° × 19°
IFOV: 1.70 mrad
Minimum object distance: 0.15 m
D:S: 588:1
Focusing mode: Manual / Automatic / Touch autofocus / Continuous autofocus
Digital zoom: 1.1× to 8×
Measurement and Analysis
Measurement range: Auto-switching supported:-40°C to 150°C; 0°C to 650°C; 500°C to 2000°C (RangeMax Ultra-wide lens kit required)
Measurement accuracy: ±2°C or ±2% (whichever is greater)
Analyzed targets: 5 (Spot / Line / Area)
Alarm: Full-screen temperature threshold alarm (Image, Voice, Color, Flash)
Others: Customizable physical button, OTA update
Image Display
Display screen: 4.3" LCD touchscreen, 800 × 480
Image modes: IR, VIS, MIF, PIP
Color palettes (15): White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice & Fire, Amber
Image adjustment: Level/Span modes – Automatic, Semi-automatic, Manual, Local dimming
Digital camera: 5 MP
Functions
Laser: Laser pointer; laser ranging 0.1 m to 40 m
Recording: Photo & Video
Cloud services: Supported
Storage and Transmission
Storage media: Built-in (64 GB) + external SD card (64 GB up to 256 GB)
Image storage: JPG (with temperature data)
Video storage:MP4 (without temp data, supports audio recording); IRGD (with temp data), up to 50 Hz (optional)
External interfaces: USB-C, SD card slot, tripod mount
Wi-Fi: Yes (real-time image & video transmission to mobile devices)
Bluetooth: Bluetooth 5.0 (image transfer, Android only)
Power System
Battery type: Rechargeable lithium-ion
Operating time: 5 hours
Environmental Parameters
Operating temperature: -20°C to 50°C
IP rating: IP54
Drop test: 2 m
Physical Parameters
Hardware: Wi-Fi, dual illuminators, microphone, speaker, electronic compass, GPS
Weight: 1.24 kg (with standard lens & battery)
Dimensions: 292 × 125 × 125 mm
Software
PC: ThermoTools
Mobile: FocusIR (iOS / Android)
Standard Accessories: Device (with lens), lens caps (front & rear), 2 lithium-ion batteries, desktop charger, power adapter, plug adapter, USB-C to USB-C cable, USB-A to USB-C cable, USB-C to Ethernet adapter, SD card (64 GB), wrist strap, shoulder strap, carrying bag, safety case, quick start guide, warranty card, inspection report, calibration certificate
Optional Accessories:
Optional lenses: Wide-angle (44°); Medium telephoto (15°); Telephoto (7°); TwinView DFOV (25°+15° / 25°+45°); RangeMax Ultra-wide Kit (25° / 15° / 7°); Other options: Tripod, docking station, Ethernet cable
