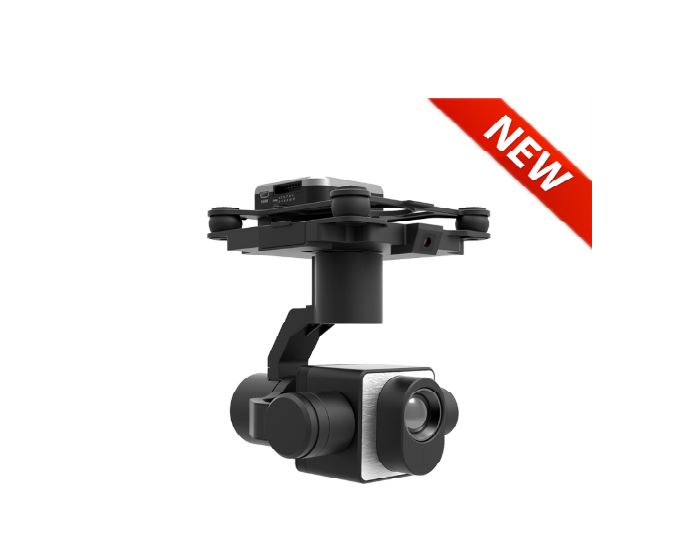

Guide GTIR800Z ກ້ອງ Infrared ສໍາລັບ Drones (-20°C~150°C)
Camera
Resolution
Infrared: 800x600
Visible light: 1280x720
Focal length
Infrared: 20mm F1.2
Visible light: 3mm F2.2
Image mode: Infrared, visible, infrared picture-in-picture, visible picture-in-picture
Zoom mode
Infrared: One-button focus, micro-focusing ＋-
Visible light: One-button focus
Image storage format: Infrared: JPG, Visible: JPG
Video storage format: Infrared: mp4, irgd; Visible: mp4
Temperature Measurement
Temperature range: -20°C～150°C
Accuracy: ±2°C or ±2% (whichever is greater)
Memory card type: MicroSD, support 128G
Working temperature: -20°C~55°C
PTZ
Three-axis stabilization system: Azimuth, roll, pitch
Frame angle
Azimuth axis: -200°~200°
Roller shaft: -45°～45°
Pitch axis: -135°~45°
Remote angle
Azimuth axis: -180°~180°
Pitch axis: -90° to 30°
Maximum rotation speed: >30°/s
Image stabilization performance: Image stabilization accuracy: ≤0.02°
Navigation Follow-up: Azimuth follows the body angle, pitch axis and roll axis stabilization image
Total weight: < 470g (Incl. junction box)
Size: 160mm×150mm×151mm
Installation method: Camera PTZ, Junction box machine, detachable
External interface: PWM,S-BUS, Serial port, RS-422
