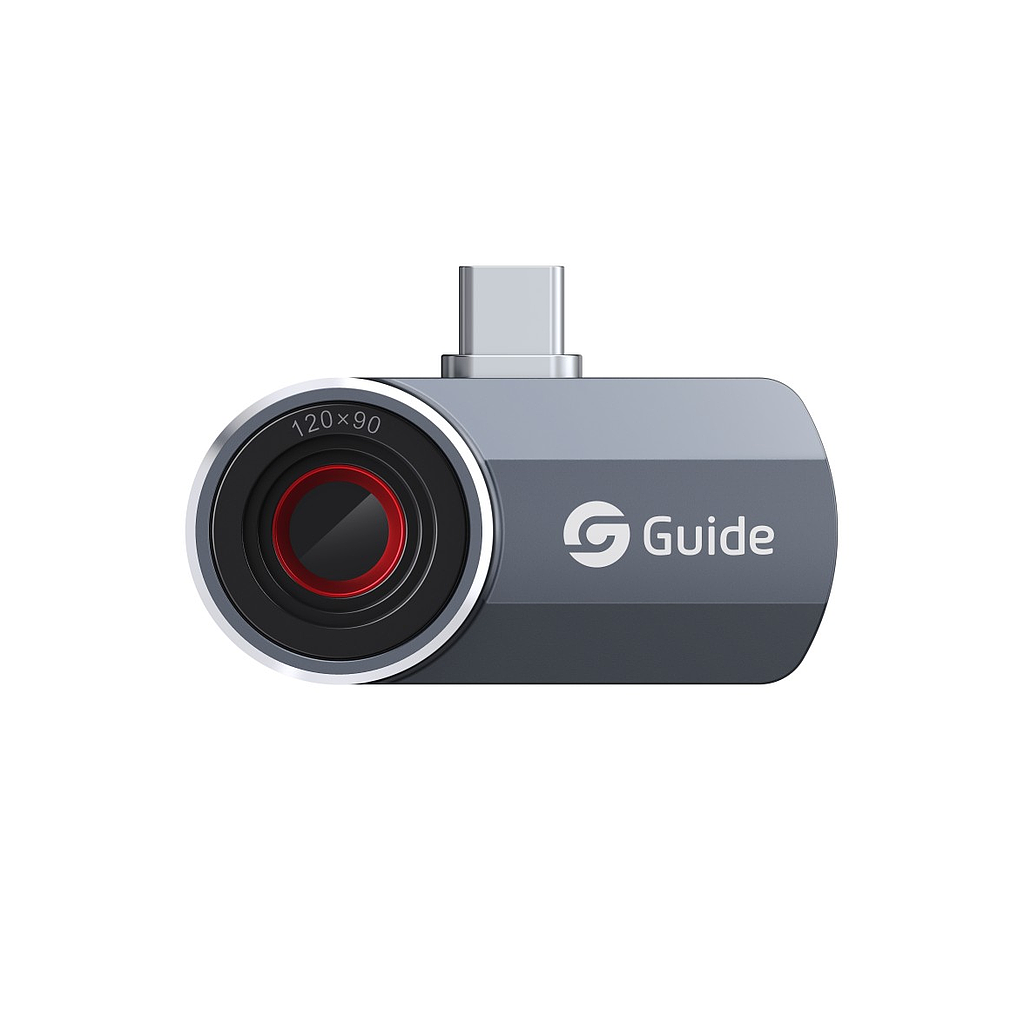

Guide ES1 ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນໂທລະສັບສະຫຼາດ (-20°C~150°C, 0°C~ 550°C, 120×90@12µm, 50°×38°)
Imaging and Optics
Core Technology: Equipped with the complete ApexVision S1 system architecture: ApexCore S1 Detector + Nexus 1.0 Platform + SharpIR 2.0 Algorithm
Detector Type: VOx, 7.5 to 14 µm
Infrared Resolution: 120 × 90 @ 12 µm
Super Resolution: Supports real-time super-resolution reconstruction, upgradeable to 480 × 360
NETD: ≤ 15 mK (@30°C)
Frame Rate: 25 Hz
Focal Length: 1.6 mm
Field of View (FOV): 50° × 38°
IFOV: 7.27 mrad
Minimum Object Distance: 0.1 m
D Ratio: 138:1
Focusing Mode: Focus-free
Measurement and Analysis
Measurement Range: Supports automatic switching between -20°C to 150°C and 0°C to 550°C
Measurement Accuracy: ±2°C or ±2%, whichever is greater
Analyzed Targets: Spot, line, area
Alarm: Available
Image Display
Image Modes: IR, PIP (access to mobile phone camera)
Color Palettes: 12 palettes and 1 customized palette
Digital Camera: None
Functions
Recording Function: Photo and video
Other Functions: OTA update
Storage and Transmission
External Interface: USB Type-C Male Connector
Power System
Battery Type: Battery-free (powered by mobile phone)
Power Consumption: 310 mW
Environmental Parameters
Working Temperature: -20°C to 50°C
IP Rating: IP54
Drop Resistance: 2 m drop test
Physical Parameters
Weight: 25 g
Dimensions: 51 × 24 × 15.1 mm
Software Kit
FocusIR (iOS/Android)
Standard Accessories
One device
Interface protective case
Carrying bag
Quick Start Guide
Warranty card
