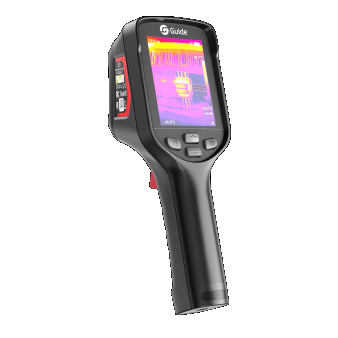

Guide E4S ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນຄ້າຍຄືເຄື່ອງມື (384×288@12μm; 15mK; -20°C~650°C)
Imaging and optics
Core Technology Item: Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm SharpIR 2.0
Detector type: VOx, 7.5 to 14μm
Infrared resolution: 384×288@12μm
Super resolution: Support real-time super-resolution reconstruction, Upgrade to 768×576
NETD: 15mK
Frame rate: 30Hz/9Hz
Focal length: 7mm
Field of view: 38°×28°
IFOV: 1.73mrad
Min. object distance: 0.3m
D:S: 578:1
Focusing mode: Focus-free
Measurement and analysis
Measurement range: Support auto-switching: -20°C to 150°C, 0°C to 650°C
Measurement accuracy: ±2°C or ±2%, whichever is greater
Analyzed target: Center spot; Three Fixed Areas: Small, Medium, Large (Alternative)
Alarm: Full screen temperature threshold alarm (Image and Flash)
Others: OTA update
Image display
Display screen: 3.5" LCD , 640×480
Image mode: IR, VIS, MIF, PIP
Color palettes: 6: Iron Red, White Hot, Arctic, Rainbow 2, Hot Iron, Rainbow 1
Image adjustment: Level span mode: Automatic, Semi-automatic, Manual
Digital camera: 2MP
Functions
Laser: Laser Indication
Recording function: Photo and Video
Storage and transmission
Storage media: Built-in (32 GB)
Image storage: JPG with temp info
Video storage: Supports real-time video streaming, video storage format in Irgd (with temp info)
External interface: USB-C, Tripod socket
WIFI: Yes, it can be connected to the mobile terminal for image and real-time video transmission
Power system
Battery type: Rechargeable lithium-ion battery, non-removable
Operating time: 10 hours
Environmental parameters
Working temperature: -15°C to 50°C
IP rating: IP54
Drop: 2m drop test
Physical parameters
Hardware: Wi-Fi, Illuminator
Weight: 460g
Size: 227×81×77.5mm
Software kit: PC: ThermoTools; Mobile: FocusIR (iOS/Android)
Standard: A device, Wrist strap, Carrying bag, Power adapter, Adapter plug, USB-A to USB-C cable, Quick Start Guide, Warranty card
Options: Macro lenses (10x/5x), Tripod
