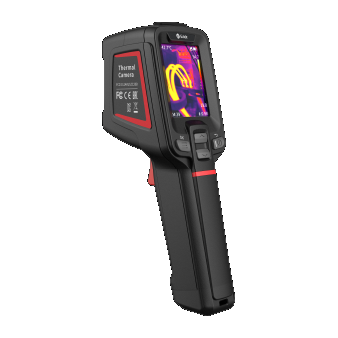

Guide E2S ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນຄ້າຍຄືເຄື່ອງມື (256×192@12μm; 15mK; -20°C~550°C)
Imaging and optics:
Detector type: VOx, 7.5 to 14μm
Infrared resolution: 256×192@12μm
Super resolution: Support real-time super-resolution reconstruction, upgrade to 512×384
NETD: 15mK
Frame rate: 25Hz/9Hz
Focal length: 3.2mm
Field of view: 56°×48°
IFOV: 3.75mrad
Min. object distance: 0.1m
D:S: 266:1
Focusing mode: Focus-free
Measurement and analysis:
Measurement range: Support auto-switching: -20°C to 150°C, 0°C to 550°C
Measurement accuracy: ±2°C or ±2%, whichever is greater
Analyzed target: Center spot; Three fixed areas: Small, Medium, Large (Alternative)
Alarm: Full screen temperature threshold alarm (image and flash)
Parameter settings: Emissivity, reflected temperature, target distance
Image display:
Display screen: 2.4" LCD
Image mode: IR, VIS, MIF and PIP
Color palettes: 6: Iron Red, White Hot, Arctic, Rainbow 2, Hot Iron, Rainbow 1
Image adjustment: Level span mode: Automatic, Semi-automatic, Manual
Digital camera: 2MP
Functions:
Laser: Laser indication
Recording function: Photo and Video
Storage and transmission:
Storage media: Built-in (16 GB)
Image storage: JPG with temperature info
Video storage: Supports real-time video streaming, video storage format in Irgd (with temperature info)
External interface: USB-C, Tripod socket
WIFI: Yes, can be connected to mobile terminal for image and real-time video transmission
Power system:
Battery type: Rechargeable lithium-ion battery, non-removable
Operating time: 11 hours
Charging mode: USB-C charging; PC/portable charger; capable of charging while using
Charging time: 90% of full charge in 2.5 hours
Environmental parameters:
Working temperature: -15°C to 50°C
IP rating: IP54
Drop test: 2m drop test
Certification: CE, FCC, RoHS, KC, EAC, FDA, Anatel, IP54, 2m drop test, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS
Physical parameters:
Hardware: Illuminator
Weight: 375g
Size: 194×61.5×76mm
Software kit: PC: ThermoTools; Mobile: Thermography (iOS/Android)
Standard: A device, Wrist strap, Power adapter, Adapter plug, USB-A to USB-C cable, Data download card, Quick Start Guide, Warranty card, Inspection report
Options: Tripod
