Input voltage: DC 30V
Rated power: 45W
Torsion range:
kgf.cm: 1-10
N.m: 0.098-0.98
Lbf.in: 0.867-8.68
Torque accuracy (%): ±5
Torque adjustment: stepless
No-load speed(rpm): 1000
Applicable screw diameter(mm):
Mechanical tooth(mm): 2.0-3.0
Self-tapping teeth(mm): 1.6-2.6
Suitable for screwdriver head: ø5
Product Details

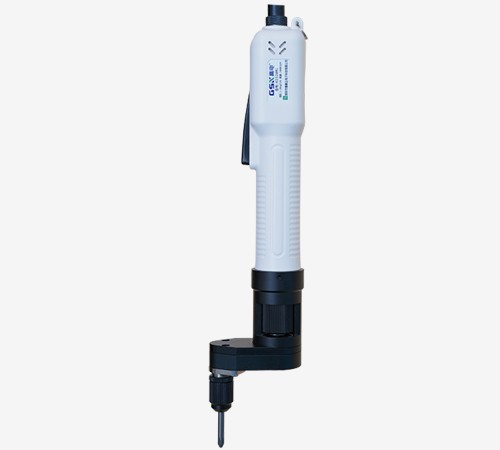

1. This mechanism is suitable for the ordinary straight electric screwdriver that cannot be used normally due to interference directly above the screw, and the mechanism avoids interference to achieve normal lock.
2. The center distance of the driver head part of this mechanism is 9.6mm, and the maximum locking torque is 16kgf.cm, which is suitable for the locking environment where the screw center distance from the edge is less than 9.6mm and the torque is less than 16kgf.cm.
3. When the size of the mechanism does not meet the actual requirements, it can be customized according to demand.
