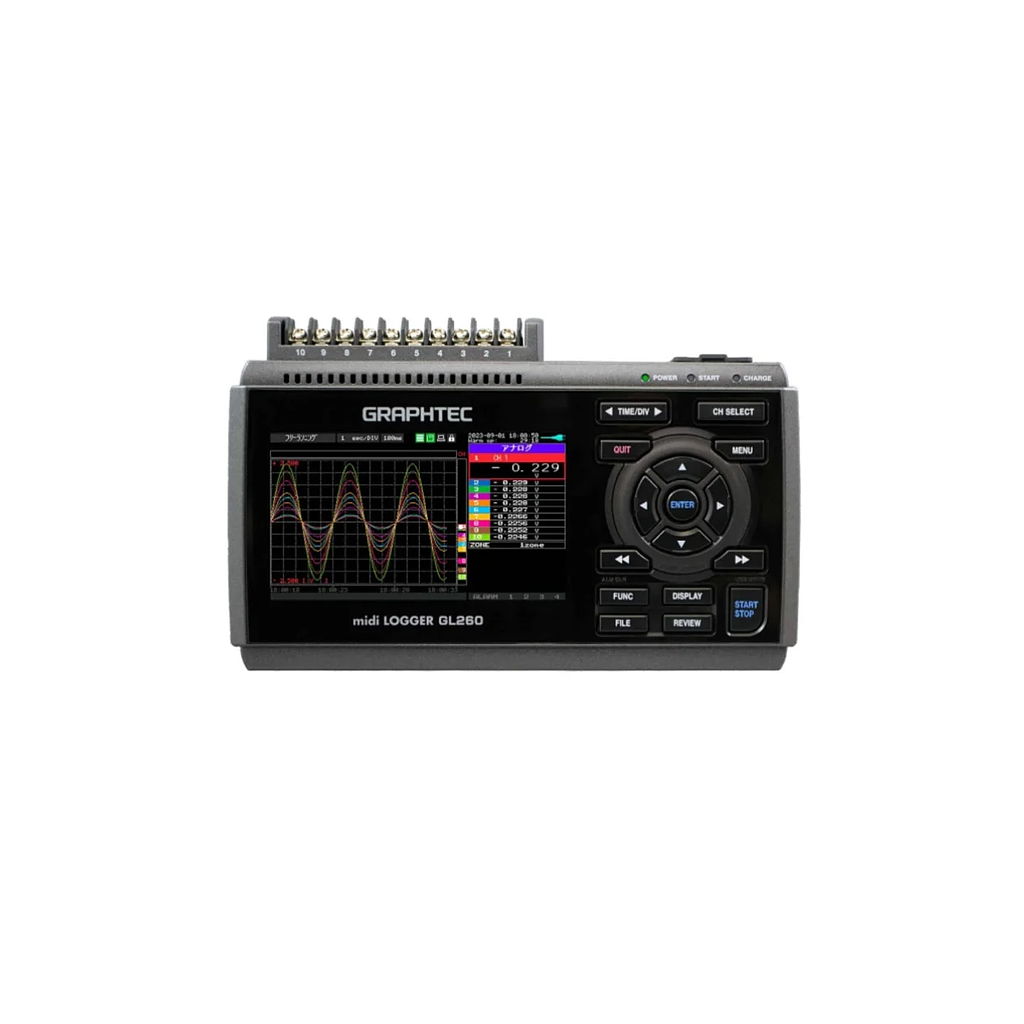

GRAPHTEC GL260 ເຄື່ອງບັນທຶກຂໍ້ມູນຫຼາຍຊ່ອງທາງ
Analog input
Number of channels: 10ch / Screw terminal (M3)
Type: Scans channels for sampling, All channels isolated, balanced input
Measurement range:
Voltage: 20mV - 100V, 1-5V F.S.
Thermocouple: K, J, E, T, R, S, B, N, C and (the old W: WRe5-26)
Humidity: 0 - 100% (optional item B-530 is required)
Filter: Off, 2, 5, 10, 20, 40 (moving average in selected number)
Max. input voltage:
Between(+) / (-) terminal:
20mV - 1V range: 60V p-p
2V - 100V range: 110V p-p
Channels ((-) / (-)): 60Vp-p
Channel / GND: 60Vp-p
External input
Number of channels: Trigger of Sampling (1 channel), or External Sample Inputs 1ch
Logic / Pulse (4 channel)
Pulse input:
Rotation count (RPM) mode(*2), Accumulating count mode, Instant count mode
Max. input frequency: 50kHz / Max. count: 50kc / sampling
External output (*1): Alarm output: 4ch
Scaling function: Analog channel, Pulse channel
Sampling interval A/D converter:
10ms - 1h (10ms to 50ms: voltage only, limited number of CH), External signal
ΔΣ type, 16Bit (effective resolution: 1/40,000 of ± range)
PC I/F: USB2.0, wireless LAN (optional item B-568 is required)
Storage medium
Storage: Built-in memory: approx. 8GB, SD card slot: 1 medium (*3)
Data format: GBD / CSV
Capturing mode: OFF (default), Ring, Relay
Other functions: Calculation function, Trigger, Alarm function, Data backup function(*4)
Display 4.3” TFT (WQVGA: 480 x 272 dots)
Operating environment (*5): 0 - 45℃, 5 - 85% RH
Power source
AC adaptor: AC100 - 240V / 50 - 60Hz
DC input: DC8.5 - 24V (optional item B-514 is required)
Battery pack: DC7.2V(2875mAh)(optional item B-573 is required)
Power consumption: Max. 36VA (when AC100V)
Dimentions: 188(W) x 117(D) x 42(H) mm
Weight: 500g (excluding AC adaptor and battery pack)
Vibration resistance: Equivalent to Automobile parts Type 1 Class A
