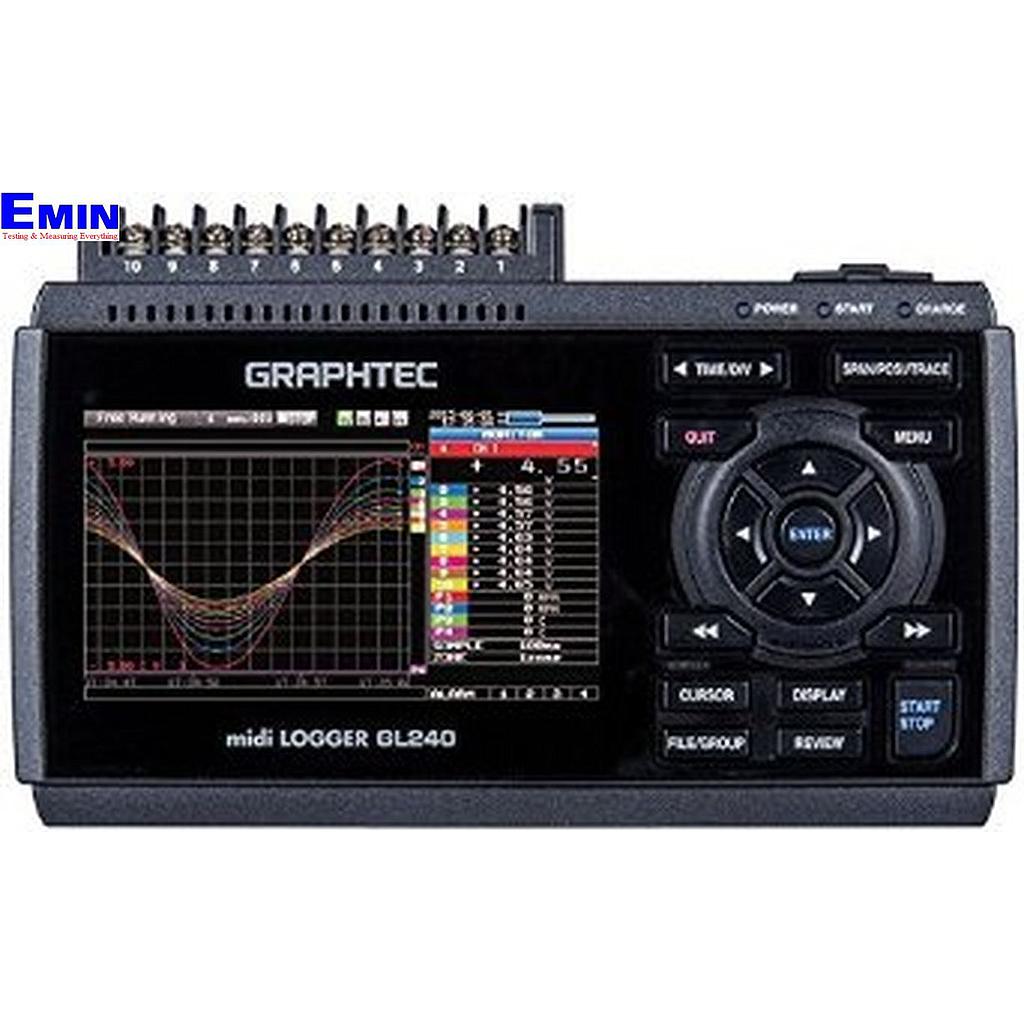

GRAPHTEC GL240 10 ຊ່ອງ 4.3

ຜູ້ຜະລິດGRAPHTEC

ModelGL240

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Item

Description

Number of analog input channels

10 channels

External input/
output *1

Input *2

Trigger or Sampling (1 channel), Logic/Pulse (4 channels)

Output *3

Alarm (4 channels)

Sampling interval

10 ms to 1 hour (10ms to 50ms: voltage only) *4, External signal

Time scale of waveform display

1sec. to 24 hour /division

Trigger,
Alarm function

Trigger action

Start or stop capturing data by the trigger

Repeat action

Off, On (auto rearmed)

Trigger source

Start: Off, Measured signal, Alarm, External, Clock, Week or Time
Stop: Off, Measured signal, Alarm, External, Clock, Week or Time

Condition Setting

Combination: OR or AND
Analog signal: Rising (High), Falling (Low), Window-in, Window-out
Logic signal: Pattern (combination of each input signal in high or low)
Pulse (number of count): Rising (High), Falling (Low), Window-in, Window-out

Alarm output

Outputs a signal when alarm condition occurs in the input signal *5

Pulse input
function

Rotation count
(RPM)

Counts the number of pulses per sampling interval and converts to rpm
(rotations per minute), Number of pulses for one rotation may be set to
50, 500, 5000, 50k, 500k, 5M, 50M, 500M rpm/F.S. (rpm./Full Scale)

Accumulating
count

Accumulates the number of pulses from the start of measurement
50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale)

Instant count

Counts the number of pulses per sampling interval
50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale)

Calculation
function

Between channels

Addition, Subtraction, Multiplication, and Division for analog input

Statistical

Select two calculations from Average, Peak, Maximum, Minimum, RMS

Search function

Search for analog signal levels, values of logic or pulse or alarm point
in captured data

Interface to PC

USB (Hi-speed), WLAN (using B-568 option)

Storage
device

Media

SD memory card (Support SDHC, up to 32 GB), supports 2 slots *6

Saved contents

Captured data, Setting conditions, Screen copy

Capturing mode

Mode: Normal, Ring, Relay
Ring: Saves most recent data (Number of captured data: 1000 to 2000000 points) *7
Relay: Saves data to multiple files without losing data until data capturing is stopped

Replay Data

Replays captured data that was saved in the GL240 (in BGD or CSV format)

Scaling (Engineering unit) function

Measured value can be converted to the specified engineering unit
• Analog voltage: Converts using four reference points (gain, offset)
• Temperature: Converts using two reference points (offset)
• Pulse count: Converts using two reference points (gain)

Action during data capture

• Displaying parst data (using dual display mode (Current + Past data))
• Hot-swapping the SD memory card
• Saving data in between cursors

Display

Size

4.3-inch TFT color LCD (WQVGA: 480 x 272 dots)

Language

English, French, German, Chinese, Korean, Russian, Spanish, Japanese

Information *8

Waveform in Y-T with digital values, Waveform only, Digital value, Digital values
and statistics values

Operating environment

0 to 45 ºC, 5 to 85 % RH (non condensed)
(When operating with battery pack 0 to 40 ºC, charging battery 15 to 35 ºC)

Power source

AC adapter

100 to 240 V AC, 50/60 Hz (1 pc of adapter is attached as standard accessory)

DC power

8.5 to 24 V DC (DC drive cable (option B-514) is required)

Battery pack

Mountable battery pack (battery pack (option B-517): 7.2V DC, 2900mAh)

Power consumption *9

Max. 36 VA

External dimensions (W x D x H)

Approx.188 x 117 x 42 mm (Excluding projections)

Weight *10

500 g

Item

Description

Model name

GL100_240_840-APS

Supported OS

Windows 10, 8.1, 8, 7, Vista (32/64-bit edition)

Supported device

GL840 (USB, Ethernet, WLAN), GL240 (USB, WLAN), GL100 (USB, WLAN)

Functions

Control the GL series, Real-time data capture, Replay data, and Data format conversion

Supported units & channels

Up to 1000 channels total, Up to 4 groups (number of units is limited by model)

Settings control

Input condition, Captuering condition, Trigger/Alarm condition, Report, etc.

Capturing data

Saved to PC

Saves captured data in real time (in GBD binary or CSV format)

Saved to GL unit

Saves to the SD memory card (in GBD binary or CSV format)

Displayed information

Y-T waveform, Digital values, Report, X-Y graph (specified period of data, data reply only),
Two displays for the current and past data, and Statistical calculation
