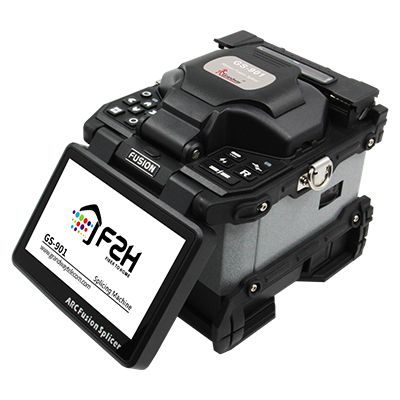

Grandwaytelecom GS-901 ອຸປະກອນຕໍ່ລວມເສັ້ນໃຍບ້າງ
Alignment method: Clad to clad
Applicable fiber: SM(G.652), MM(G.651), DS(G.653), NZDS(G.655)
Fiber cores quantity: Single core, 2–12 cores
Coating diameter: 250–400μm
Typical splice loss: SM: 0.05dB; MM: 0.02dB; DS: 0.08dB; NZDS: 0.08dB
Return loss: >60dB
Splicing program: 40 groups
Operation mode: Manual / Automatic
Auto-heating: Available
Typical splice time: 20 seconds
Typical heating time: 1–2 cores: 26 seconds; 4–12 cores: 40 seconds
Fiber magnification: 25X
Viewing display: Dual high sensitivity camera, 5 inch 800×480 LCD Touch Screen Monitor
Data storage: 10,000 groups data records and 200 groups images
Loss evaluation: Available
Tension test: 1.8~2.2N
Interface: GUI menu interface, easy for operation
Battery capacity: 5200mAh Li-battery, 150 cycles splicing and heating
Power supply: Adaptor, input: AC100–240V(50/60Hz), output: DC11–13.5V
Electrode life: More than 3000 ARC discharges, easy to replace
Terminals: USB 2.0 port, for software upgrading, records exporting
Operating: Altitude 0–5000m; Humidity 0–95%; Temperature -10℃ ~ +50℃; Wind: max 15m/s
Dimension/Weight: 155mm(L) × 144mm(W) × 155mm(H) / 2.3kg (including battery)
