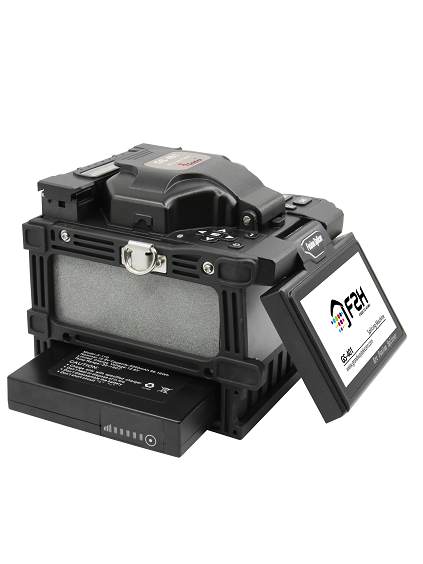

Grandwaytelecom GS-401 ອຸປະກອນຕໍ່ສາຍເຄືອງ Fusion Splicer
Alignment method: 4 motors core to core alignment
Applicable fiber: SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), BIF(G.657)
Cladding diameter: 80–150μm
Coating diameter: 160–3000μm
Cleaved length: 5–16mm (coating diameter<250μm), 16mm (coating diameter:250–3000μm)
Typical splice loss: SM: 0.02dB; MM: 0.01dB; DS/NZDS/BIF: 0.04dB
Return loss: >60dB
Splicing program: 40 groups
Operation mode: Manual / Automatic
Auto-heating: Available
Typical splice time: 7 seconds
Typical heating time: 26 seconds for 60mm and 40mm shrinkable sleeves
Fiber magnification: 250X(X or Y view), 125X(X and Y view)
Viewing display: Dual high sensitivity camera, 4.3 inch LCD Touch Screen Monitor
Data storage: 4000 groups data records
Loss evaluation: Available
Tension test: 1.8~2.25N
Interface: GUI menu interface, easy for operation
Battery capacity: 5200mAh Li-battery, 250 cycles splicing and heating
Power supply: Adaptor, input: AC100–240V(50/60Hz), output: DC11–13.5V
Electrode life: More than 4000 ARC discharges, easy to replace
Terminals: USB 2.0 port, for software upgrading, records exporting
Operating: Altitude 0–5000m, Humidity 0–95%, Temperature -10℃~+50℃, Wind: max 15m/s
Dimension/Weight: 149mm(L)×120mm(W)×127mm(H) / 1.90kg (including battery)
