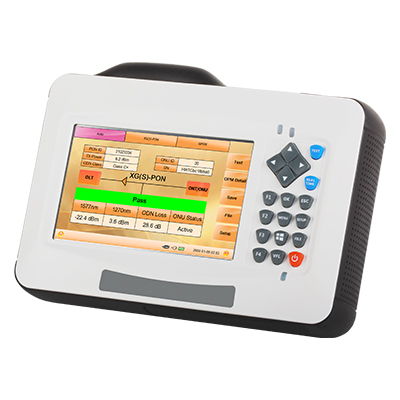

Grandwaytelecom FOH-200XGS-MAX ຕົວທົດສອບ PON (Downlink 1490nm/1577nm, uplink 1270nm/1310nm)
Applicable Network: XG(S)-PON, GPON, 10G-EPON, EPON
Test Mode: Series connect: Two ports pass-through mode
Insertion Loss: <1.5dB
PON Data Parsing:
OLT info: OLT PON ID, ODN class, Tx power
ONU info: ONU ID, ONU SN
Power Measurement:
Downlink: 1490nm and 1577nm
Uplink: 1270nm and 1310nm
OTDR Function:
Dynamic range: 20dB
Wavelength: 1650nm (1550nm optional)
Deadzone: 1m/4m
Optical Interface: SC/APC × 2
Charging Port: USB Type-C, 20W quick charge
Power Supply: 5000mAh lithium battery, input: 5V/2A
Display: 5 inch touch screen
Wireless: Bluetooth with Android phone app
Data Storage: 16G TF Card
Working Temp: -10°C ~ 50°C
Humidity: 5% – 95% (no condensation)
Dimension: 195 × 141 × 44 mm
Weight: 900g
