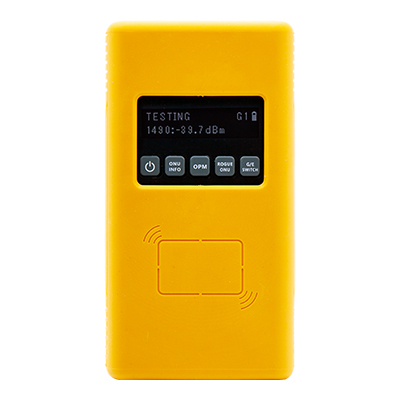

Grandwaytelecom FOH-100 PRO ຕົວທົດສອບ G/EPON
Applicable PON network: GPON/ EPON
Test Mode: Series connect; two ports pass through mode
Insertion loss: No insertion loss; signal enhanced 3–10dB when connected to PON
Wireless: Bluetooth connection with Android phone app
PON Data Parsing: OLT info: PON ID, OLT Tx power, class level; ONU info: SN, Password, PPPoE, LOID, MAC
ONU Status Identification: Online, ONU unregistered, Rogue ONU (100% accuracy), Offline, No ONU, Fiber break (90% accuracy)
High-precision OTDR:
Working wavelength: 1550nm
Deadzone: 2m/6m
Dynamic range: >6dB
Rogue ONU detection: Support fast identification and location of rogue ONU before the first splitter
PON Power Meter: 1310nm: -30~+5dBm; 1490nm: -30~+5dBm
Optical Interface: SC/UPC *2 or SC/APC*2
Charging Port: USB Type-C charging port
Power Supply: 7500mAh lithium battery; Input: 5V/2A
Working Temp: -10°C ~ 50°C
Humidity: 5% ~ 95% (no condensation)
Dimension: 175×94×46.5mm
Weight: 700g
