PHOTOMETRY
Applications: Daylight, LEDs, halogen and more
Illuminance [lux]: 10 lx – 100 000 lx
Irradiance Ee: ✓
Luminous Efficacy Ratio LER: ✓
CCT – color temperature: 1600 K … 50 000 K (Duv > – 0.1)
Duv – color temperature difference relative
to the Planckian locus: (1600 K < CCT < 50 000 K)
Color Rendering IES TM-30-15: Rf, Rg
CRI – color rendering index per CIE 13.3: Ra, Re, R1 – R15
Gamut Area Index GAI: ✓
Peak wavelength: ✓
Dominant wavelength per CIE 15: ✓
Color purity per CIE 15: ✓
Chromaticity coordinates [x,y] per CIE 1931: ✓
Chromaticity coordinates [u’,v’] per CIE 1976: ✓
Chromaticity coordinates [u,v] per CIE 1960: ✓
Flicker – index: 0.00 … 1.00 (f < 400 Hz and Flicker % > 2.5 %)
Flicker – %: 1 % … 100 % (f < 400 Hz)
Flicker – frequenzy: 2 Hz … 6000 Hz (Flicker % > 2.5 %)
Configurable measured value display: ✓
Selectable Units Of Measure: lx / °C – fc / °F

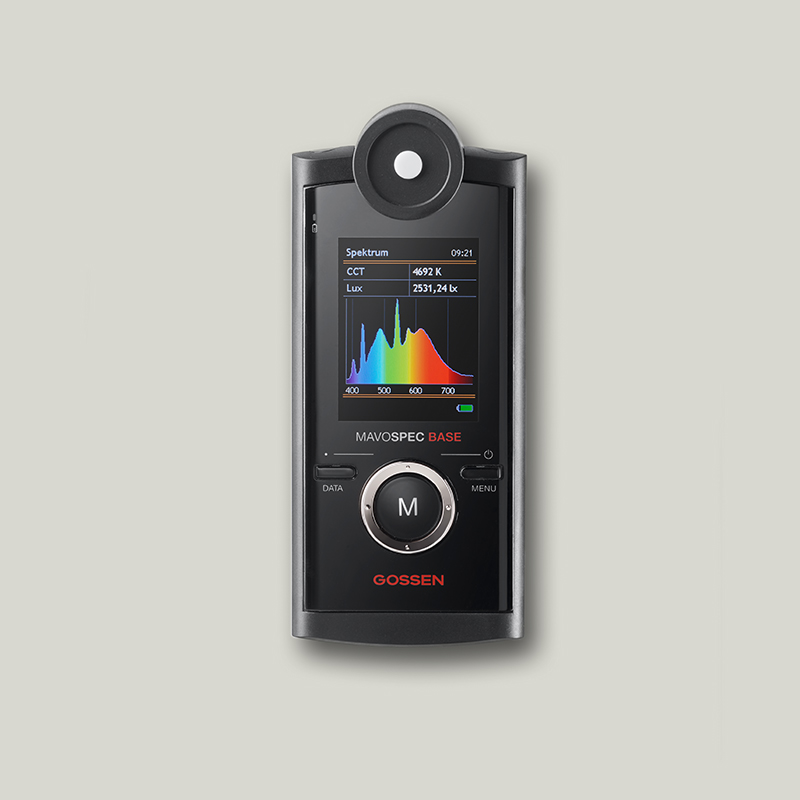

SENSOR TECHNOLOGY, MEASUREMENT TOLERANCES MAVOSPEC BASE
Sensor: CMOS image sensor, 256 pixels
Diffusor light-entry surface: Φ 7 mm
Distance, diffuser to surface to be measured: 25 mm
Error limit – cos like rating (f2′): ≤ 3.00 %
Spectral range: 380 – 780 nm (VIS)
Full width at half maximum (FWHM): ≤ 15 nm (typically 12 nm)
Physical resolution: ~ 1.72 nm
A-D converter: 16 bit
Wavelength reproducibility: ± 0.5 nm
Integration time: automatic, manually
10 ms – 3000 ms
Signal-to-noise ratio: 1000:1
Spurious light: -25 dB
Dark current compensation: Automatic via temperature sensor
Measurement uncertainty, illuminance *: ± 3 %
Reproducibility, chromaticity *: ± 0.0005
Measurement uncertainty, CCT *: ± 2 %
Measurement uncertainty, TM30*: ± 1.5 %
Measurement uncertainty, CRI*: ± 1.5 %
Measurement uncertainty, Flicker*: ± 1.5 %
* Standard light type A, 2856 K @ 1000 lx:
MISCELLANEOUS
Mains power pack: 100 – 240 V (50/60 Hz) 0.15 A
5 V, 1 A (DC) USB port
Power supply via USB port: ✓
Rechargeable battery: Li-Ion 3.7 V – 890 mAh
Automatic shutdown: Programmable for display and device
Rechargeable battery life: ≥ 8 hours continuous operation
Charging time with power pack: 1.5 hours
Operating temperature: 5 – 40 °C
Dimensions [H x W x D]: 139 mm x 60 mm x 30 mm
Weight: 150 g
Scope of delivery: Meter, sensor cover cap, V070A rechargeable battery, power pack, USB interface cable, aluminum case, neoprene sheath, carrying strap, calibration protocol, operating instructions in German and English, 4 GB micro SDHC memory card including EXCEL file with several protocol templates and operating instructions in German, English, French, Italian, Spanish as PDF, SD adapter
OPERATION, INTERFACES, MEMORY
Display: 2.1″ color TFT, 320 x 240
Controls: 3 keys, ring controller
Interface: USB 2.0
Interface protocol: open
Data storage: 4 GB micro SD / 500.000 measurements
Memory mode: Manual, auto
Data format: CSV
