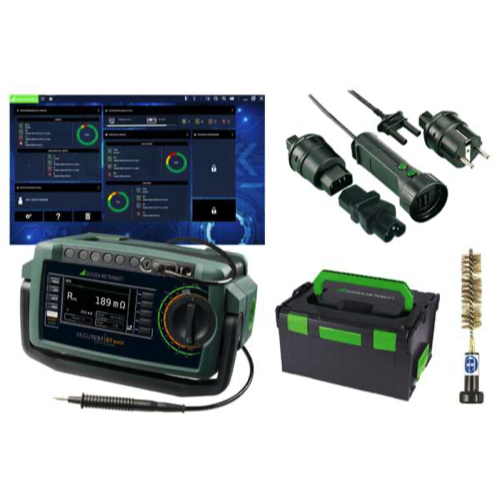

Gossen Metrawatt STARTERPAKET SECUTEST ST BASE ເຄື່ອງມືທົດສອບສຳລັບການທົດສອບຄວາມປອດໄພທາງໄຟຟ້າຂອງອຸປະກອນຕ່າງໆ (200 mA DC; 50 V ~ 500 V DC)
Instrument Variant: Includes the SECUTEST ST BASE (M707A) Schuko variant (test socket and mains plug).
Standard Compliance: Designed for testing electrical safety per EN 50699 / VDE 0702 and EN 50678 / VDE 0701.
Protective Conductor Resistance (RPE): Features a fixed 200 mA DC test current for continuity testing.
Insulation Resistance (RINS): Provides adjustable test voltages ranging from 50 V to 500 V DC.
Leakage Current Measurement: Supports alternative, direct, and differential measurement methods (IPE, IT, IE, IA).
Functional Test Capacity: Permits active testing of instruments with a nominal load current of up to 16 A.
Display: Equipped with a high-resolution, brilliant 4.3" TFT color display for results and wiring diagrams.
Data Storage: Extensive internal memory capable of storing up to 50,000 data records.
Mains Operating Range: Supports a wide nominal line voltage range from 90 V to 264 V AC.
Frequency Range: Compatible with line frequencies from 50 Hz to 400 Hz.
Software Included: Bundled with an IZYTRONIQ BUSINESS ADVANCED license for professional data management.
System Case: Includes the SORTIMO L-BOXX (Z503D) plastic system case for site mobility.
Protective Packaging: Features a custom Foam Insert (Z701D) to secure the instrument and accessories.
Extension Cord Testing: Includes the EL1 Adapter (Z723A) for testing single-phase extension cords.
Specialized Probing: Includes a Brush Probe (Z745G) for measuring protective conductor resistance on rotating parts.
Data Interfaces: Dual USB master ports for connecting barcode readers, printers, or keyboards.
PC Connectivity: Dedicated USB slave port for remote control and data transmission to IZYTRONIQ.
Housing Design: Compact, impact-resistant housing featuring an integrated rubber protector.
Safety Category: Rated for Measuring Category 300 V CAT II and Protection Class I per EN 61140.
Quality Certification: Supplied with a DAkkS Calibration Certificate in German, English, and French.
