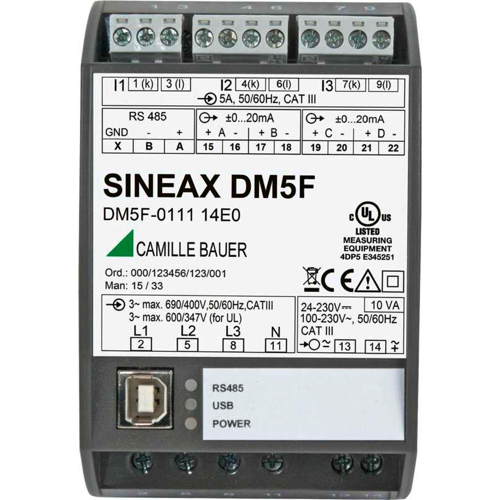

Gossen Metrawatt SINEAX DM5F ເຄື່ອງວັດແທກຫຼາຍໜ້າທີ່ ແລະ ສາມາດຕັ້ງໂປຣແກຣມໄດ້ (1/2 Cycle Measurement, 4 Analog Outputs, USB, Modbus/RTU)

Measurement time, programmable: ½, ½ (1), 2,4, 8 cycles

Fastest response time (at 50Hz): 15...25 ms

Energy metering: not supported

Individual harmonics and THD V/I: not supported

Auto-scaling V/I inputs: not supported

Inputs: via screw terminals 6 mm2

Nominal current: adjustable 1...5 A

Maximum: 7.5 A (sinusoidal)

Consumption: ≤ I2 x 0.01 Ω per phase

Overload capability:

10 A continuous

100 A, 10 x 1 s, interval 100 s

Nominal voltage: 57.7…400 VLN, 100...693 VLL

Maximum: 480 VLN, 832 VLL (sinusoidal)

Consumption: ≤ U2 / 1.54 MΩ per phase

Impedance: 1.54 MΩ per phase

Overload capability:

480 VLN, 832 VLL continuous

600 VLN, 1040 VLL, 10 x 10 s, interval 10 s

800 VLN, 1386 VLL, 10 x 1 s, interval 10 s

Nominal frequency: 45… 50 / 60 …65 Hz

Measurement TRMS: up to 31st harmonic

Types Of Connection: Single phase, 3/4-wire balanced load (3U,1I)

Power Supply: via screw terminals 6 mm2

Nominal voltage: 100…230 V AC ±15%, 50...400 Hz

24...230 V DC ±15%

Consumption: ≤ 10 VA

Analog Outputs: 4 analog outputs, bipolar ±20mA

Bus connection: RS-485 (Modbus/RTU protocol)

Protection rating: IP30 (housing), IP20 (terminals)

Overvoltage category: CAT III up to 600V

Dimensions (H x B x D): 110 x 70 x 70mm

Weight: 500 g
