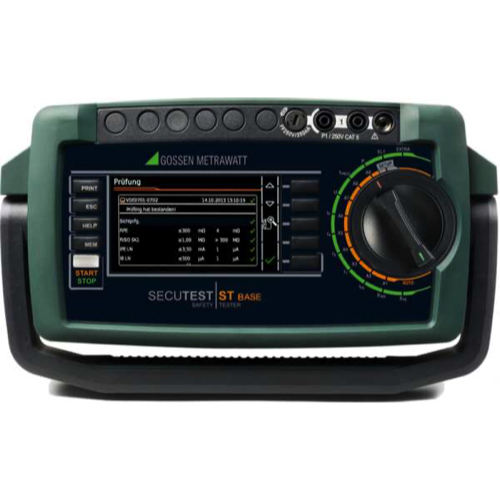

Gossen Metrawatt SECUTEST ST BASE ເຄື່ອງມືທົດສອບສຳລັບການທົດສອບຄວາມປອດໄພທາງໄຟຟ້າຂອງອຸປະກອນຕ່າງໆ (200 mA; 500 V DC)
Test Standards: EN 50678, EN 50699, IEC 62353, and IEC 60974-4.
Protective Conductor Resistance (RPE): 200 mA test current.
Insulation Resistance (RINS): Test voltage up to 500 V DC.
Leakage Current Methods: Direct, Differential, and Alternative.
Touch Current (IT): Direct measurement via P1 probe.
Device Leakage (IE): RMS measurement up to 30 mA.
Patient Leakage (IP): RMS measurement (AC/DC components).
Function Test: Active testing (Power, Current, Voltage, PF).
PRCD Testing: Trip time measurement for 30 mA PRCDs.
Display: 4.3" brilliant TFT color display (480 x 272 pixels).
User Interface: Operation via double rotary switch and softkeys (No touchscreen).
Data Storage: Up to 50,000 data records.
Interfaces: 2x USB Master (for scanners/printers), 1x USB Slave (PC).
Database Expansion: Basic database (Customer/Location/DUT).
Report Generation: IZYTRONIQ Business Starter software included.
Housing Protection: IP40 (Housing), IP20 (Test Socket).
Weight: Approx. 2.5 kg.
Dimensions: 295 x 145 x 150 mm.
Operating Temperature: 0°C to +40°C.
Calibration: Includes DAkkS calibration certificate.
