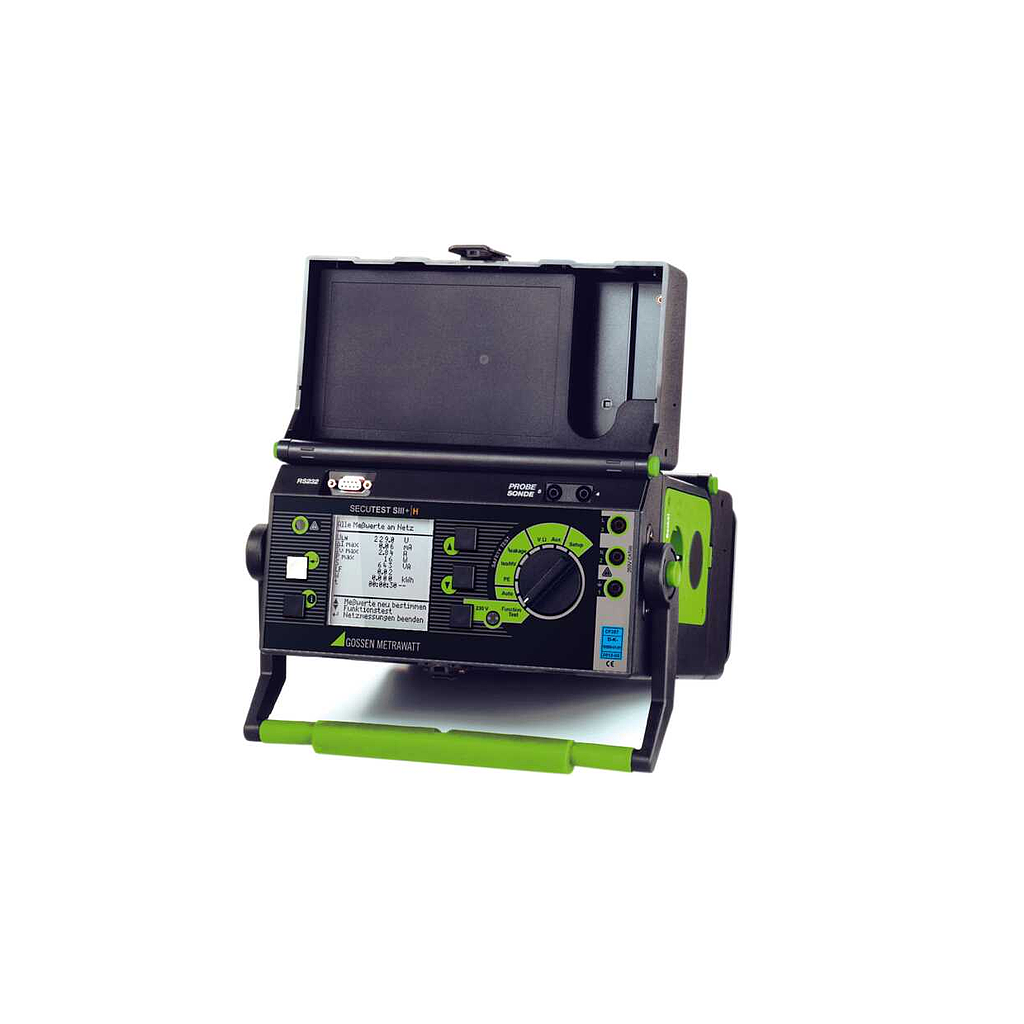

Gossen Metrawatt SECUTEST SIII+ HV US ເຄື່ອງທົດສອບຄວາມປອດໄພທາງໄຟຟ້າ
Reference Ranges
Line Voltage: 115/230 V ±0.2%
Line Frequency: 50/60 Hz ±0.1%
Waveshape: Sine (deviation between effective and rectified value <0.5%)
Ambient Temperature: +23°C ±2 K
Relative Humidity: 40%–60%
Load Impedance: Linear
Nominal Ranges of Use
Line Voltage: 103.5–126.5 V or 207–253 V
Line Frequency: 50 Hz or 60 Hz
Line Voltage Waveshape: Sine
Ambient Conditions
Temperature: 0°C–+50°C
Storage Temperature: –20°C–+60°C
Operating Temperature: –10°C–+50°C
Accuracy Range: 0°C–+50°C
Relative Humidity: Max. 75%, no condensation allowed
Elevation: Max. 2,000 m
Power Supply
Line Voltage: 103.5–126.5 V or 207–253 V
Line Frequency: 50 Hz or 60 Hz
Power Consumption: Approx. 30 VA
For 10 A test current: Approx. 95 VA, test duration max. 40 s
For 25 A test current: Approx. 180 VA, test duration max. 40 s
For function test: Continuous, max. 3,600 VA; power is conducted through the instrument only, switching capacity ≤16 A
RS-232 Data Interface
Type: RS-232C, serial, per DIN 19241
Format: 9600, N, 8, 1
Connector: 9-pin subminiature socket connector
Electrical Safety
Safety Class: Class I per IEC 61010-1/EN 61010-1/VDE 0411-1
Nominal Voltage: 115/230 V
Test Voltage: 3.7 kV, 50 Hz
Measuring Category: 250 V CAT II (not valid for jacks 1, 2 and 3)
Pollution Degree: 2
Safety Shutdown for Residual Current at Device Under Test: >25 mA, disconnecting time <100 ms
Probe Current: >10 mA, disconnecting time <1 ms
* For detailed specifications, please refer to the Datasheet.
