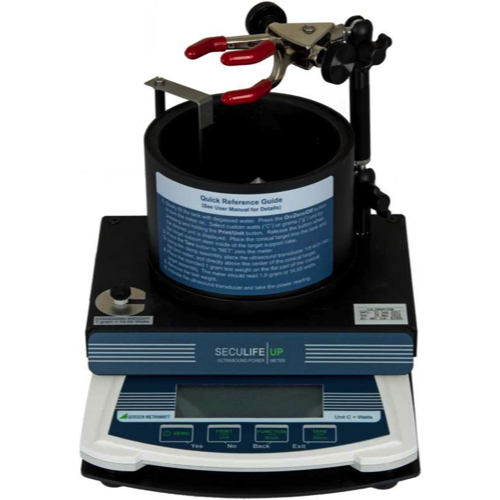

Gossen Metrawatt SECULIFE UP ເຄື່ອງວັດແທກອັລຕຣາຊາວດິຈິຕອນ (0 ~ 30 W; 0.5 ~ 10 MHz)
The SECULIFE UP is used to measure and document the power of medical ultrasound transducers.
Size: 21.6 x 30.5 x 22.2 cm (H x D x W)
Carrying Case: Polyethylene
Tank Lining: 0.5 Inch (12.7 mm) thick Neoprene
Weight: 5 kg
Frontplate: Lexan / Back printed
Operating Range: 15 to 30 °C
Storage Range: -40 to 60 °C
Functions
Battery: Quantity 4, AA (IEC LR6) Alkaline
Battery Eliminator: 12 V, 500 mA, 90-264 V AC
Display: 6 digit, Backlight LCD
Power Range: 0 to 30 W
Resolution: +/- 50 mW
Minimum Detectable Power Level: 50 mW
Accuracy: +/- % + One Count Reading
Digital Filter: 2.5 seconds Integration
DUT Operating Frequency: 0.5 to 10 MHz
DUT Maximum Transducer Size: 4.00 Inches (101.6 mm)
Test Medium: Degassed Water @ 24.0 +/- 3.0 °C
