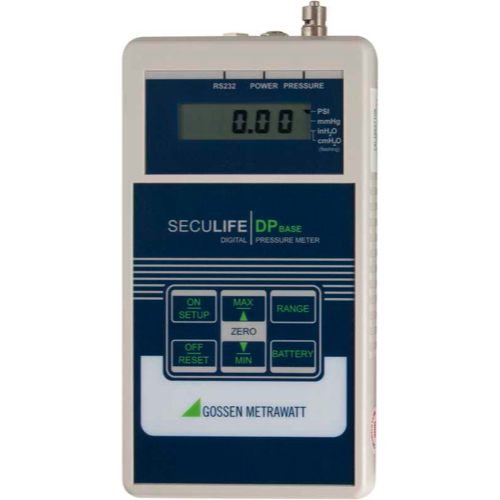

Gossen Metrawatt SECULIFE DP BASE ເຄື່ອງວັດແທກຄວາມດັນດິຈິຕອນ (-13.50 ~ 100.00 PSI; PSI, inH2O, cmH2O, mmHg)
Pressure:
Range:
-13.50 to 100.00 PSI
-701 to 5190 mmHg @ 20°C
-374 to 2773 inH₂O @ 20°C
-951 to 7043 cmH₂O @ 20°C
Resolution:
0.01 PSI
1 mmHg @ 20°C
1 inH₂O @ 20°C
1 cmH₂O @ 20°C
Maximum overpressure: 200 PSI
Accuracy: ±0.1% FS
Digital filter: 1 – 255 samples
Compatible media: Only non-corrosive, non-ionic, or
otherwise pure fluids and/or gases that are compatible with sensor materials including glass, silicon, ceramic, epoxy, RTV, gold, aluminium and nickel.
Connections: Male Luer coupler
Device:
Display: 5-digit, 7-segment non-backlit LCD
Enclosure: ABS plastic
Overlay: Lexan, back printed
Size: 195.3 × 100.8 × 46.2 mm
Weight: 0.45 kg
Operating range: 0 – 50°C
Storage range: -40 – 60°C
Electrical:
Battery: 9 V alkaline (ANSI/NEDA 1604A or equivalent)
Battery eliminator: 9 V, 50 mA DC
Power consumption:
ON: < 15 mA
OFF: < 40 µA
RS-232 Communication:
Baud rate: 115200
Data bits: 8
Start bits: 1
Stop bits: 1
Parity: None
Handshaking: None
Connection: 1/8” stereo receptacle
