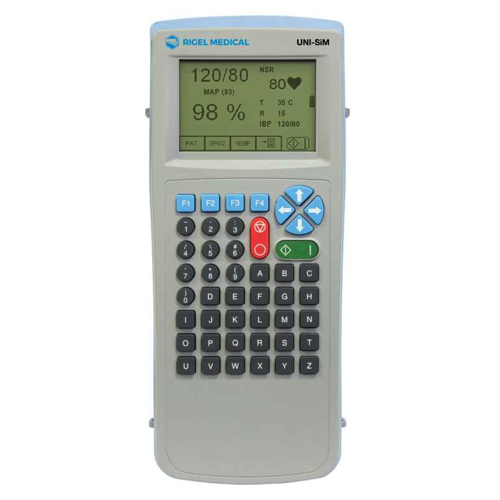

Gossen Metrawatt Rigel Uni-Sim ເຄື່ອງຈຳລອງສັນຍານຊີວິດ (20 - 300BPM)
General:
Operation: Battery cell, in-situ charge
Battery Charger: 100–240 VAC, 50/60 Hz
Supply: 12 VDC centre positive
Memory Capacity: Approx. 5,000 records
Communication: via Bluetooth
Display: Monochrome, ¼ VGA full graphics
Keypad: Alpha-numeric
Weight: < 1.5 kg (< 3.5 lbs)
Size (L x W x D): 270 x 110 x 75 mm / 10.5 x 4 x 3"
Environmental Protection: IP 40
Non-Invasive Blood Pressure Simulation:
Waveform: Oscillometric
Pulse Volume: High, Medium, Low, Paediatric
Heart Rate: 20 – 300 BPM
Integrated Pump: 0 to 350 mmHg (user configurable)
Leak Test: User configurable between 0 – 350 mmHg
Chronometer: Configurable up to 999 secs
Digital Manometer: 0 – 410 mmHg
Pressure Accuracy: ±0.5% FS
Pressure Units: mmHg, inHg, kg/cm², cmH₂O, mBar, PSI, in H₂O, kPa
Oxygen Saturation Simulation (PULS-R): 30 – 100%
ECG Arrhythmia Simulator:
Heart Rate: 20 – 300 BPM
Simulation: 5 lead (NSR, ST Elevation, ST Depression, Myocardial Infarction, Tall T)
ST Elevation / Depression: 20 – 300 BPM
Myocardial Infarction:
Type: Ischemia, Injury, Infarction, Inferior Infarction
Heart Rate: 20 – 300 BPM
Tall T:
Heart Rate: 80 BPM
T Wave Amplitude: 0 – 1.2 mV (steps of 0.1 mV)
Arrhythmia Waveforms (Atrial):
Simulation: 5 lead
Atrial: Yes
Atrial Conduction: Yes
Ventricular: Yes
Performance Waveforms: Sine, Square, Triangle, Pulse
Pacer Waveforms: Yes
R Wave Detection: Yes
Temperature Simulation: YSI 400 / 700; 25, 33, 37, 41 °C
Respiration Simulation: 5, 10, 15, 30, 60, 120, 180 breaths per minute
Invasive Blood Pressure Simulation: Yes
