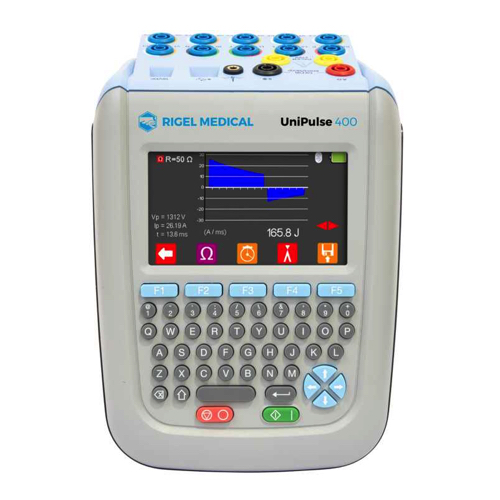

Gossen Metrawatt Rigel Uni Pulse 400 ເຄື່ອງວິເຄາະເຄື່ອງກະຕຸ້ນຫົວໃຈ (50Ω; 0 - 199.9 Joules)
Application: Testing and verification of defibrillators and pacemakers
Design: Portable, battery-powered
Battery: Rechargeable NiMH (9.6V, 2400mAh)
Battery Life: approx. 12 hours
Dimensions (L x W x H): 220 x 150 x 90 mm
Weight: approx. 1.5 kg
Protection Class: IP40
Display: Color LCD graphic display
Interfaces: USB
Memory: up to 100 test results (with graphs)
Measurement Functions:
Defibrillator Energy: 0 – 600 Joules
Voltage Measurement: up to 5000 V
Current Measurement: up to 100 A
Sampling Rate: 250 kHz
Load Resistance: 50 Ω (non-inductive)
Pulse Width: 5 µs – 120 ms
Charge Time Measurement: Yes
Cardiac Synchronization: Yes
ECG / Simulation Functions:
ECG Simulator: Multi-waveform (sinus, arrhythmias, etc.)
Heart Rate Range: 20 – 300 BPM
Waveforms: >40 selectable arrhythmias
Performance Waveforms: Sine, square, triangle, sawtooth
Noise Simulation: 50 / 60 Hz
Pacer Functions:
Pacer Modes: 5 modes (AAI, AOO, VVI, DDD, etc.)
Pulse Rate: 5 – 800 ppm
Pulse Current: 5 – 200 mA
Pulse Width: 1 – 100 ms
Variable Load: 50 – 1600 Ω
Sensitivity Test: 0.05 – 5.00 mV
Refractory Period Test: 15 – 500 ms
Features:
Waveform Analysis: Monophasic, biphasic, pulsed
User Interface: Fast keys + intuitive navigation
Data Management: USB download to PC (Med-eBase)
Portability: Compact, rugged design
Operation: Full battery operation (no mains required)
