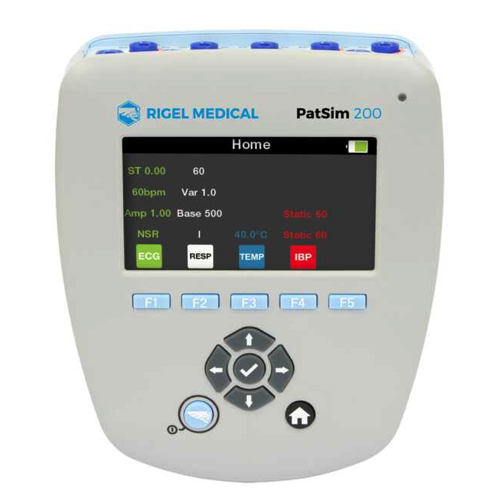

Gossen Metrawatt Rigel PatSim 200 ເຄື່ອງຈຳລອງຄົນເຈັບ (30–300 bpm)
General ECG:
Simulation: Full 12 lead ECG with independent outputs for each signal lead
Lead I: 70%
Lead II: 100%
Lead III: 30%
Lead V1: 24%
Lead V2: 48%
Lead V3: 100%
Lead V4: 120%
Lead V5: 112%
Lead V6: 80%
ECG Normal Sinus Rhythm:
Simulation: Full 12 lead ECG with independent outputs for each signal lead
Heart Rate: 18 selectable values 30–300 bpm
Amplitude (lead II): 0.05 mV to 0.45 mV (0.05 mV steps); 0.5 mV to 5.5 mV (0.5 mV steps)
ST Segments: 18 selectable values, 8 elevated & 8 depressed
Neonatal Mode: ECG R wave width is reduced to 40 ms
Arrhythmia Waveforms (Atrial):
Amplitude (lead II): 0.05 mV to 0.45 mV (0.05 mV steps); 0.5 mV to 5.5 mV (0.5 mV steps)
Ventricular; Supraventricular; Atrial Conduction; Premature Waveforms
Performance Waveforms:
Square Waves: 2 Hz, 0.125 Hz
Triangle Wave: 2 Hz
Pulse: 60 bpm or 240 bpm
Sine Waves: 0.05, 0.5, 1, 10, 25, 30, 40, 50, 60, and 100 Hz
R-Wave Detector Test: 60 BPM haver-triangle wave with selectable width and amplitude
Haver-triangle Width: 12 selectable values between 8 and 200 ms
Performance amplitude: 0.5 to 5.0 mV in 0.5 mV steps
Pacer Waveforms:
Simulated Rhythms: Asynchronous at 75 bpm; Demand with frequent sinus beat; Demand with occasional sinus beat; A-V sequential; Non-capture; Non-function
Pulse Amplitude: 1.0, 2.0, 5.0, 10.0 mV
Accuracy: ±10%
Width: 5 selectable values 0.1–2.0 ms
Accuracy: ±5%
R Wave Detection:
Heart Rate: 6 selectable values 30–250 BPM
Amplitude: 0.05 mV to 0.50 mV (0.05 mV steps)
R wave width: 13 selectable values 8–200 ms
Respiration Simulation:
Rates: 0, 5, 10, 15, 30, 40, 60, 80, 120, 180 brpm
Resistance Variations: 0.2, 0.5, 1.0, 3.0 Ω
Base resistances: 500, 1000, 1500 and 2000 Ω
Lead selection: 1 (LA), 2 (LL) user selectable
Apnoea Simulation: Manual on/off
Temperature Simulation:
Simulation: YSI 400/700A/700B Static
Temperature unit: °C or °F, user selectable
Range: pre-set 4 values at 0.0, 24.0, 37.0, 40.0°C; pre-set 4 values at 32.0, 75.2, 98.6, 104.0°F
Invasive Blood Pressure Simulation:
Channels: 2 channels
Static Pressure: -10, -5, 0, 20, 40, 50, 60, 80, 100, 150, 160, 200, 240, 320, 400 mmHg
Respiration Simulation:
Rates: 0, 5, 10, 15, 30, 40, 60, 80, 120, 180 brpm
Resistance Variations: 0.2, 0.5, 1.0, 3.0 Ω
Base resistances: 500, 1000, 1500 and 2000 Ω
Lead selection: 1 (LA), 2 (LL) user selectable
Apnoea Simulation: Manual on/off
Temperature Simulation:
Simulation: YSI 400/700A/700B Static
Temperature unit: °C or °F, user selectable
Range: pre-set 4 values at 0.0, 24.0, 37.0, 40.0°C; pre-set 4 values at 32.0, 75.2, 98.6, 104.0°F
Invasive Blood Pressure Simulation:
Channels: 2 channels
Static Pressure: -10, -5, 0, 20, 40, 50, 60, 80, 100, 150, 160, 200, 240, 320, 400 mmHg
General Specifications
Mains power/Battery info:
3.7V 3900mAh 14.4WH Li-Ion battery
5V 1A USB micro-B power supply
100-240V~50/60Hz 0.18A max.
Weight: 0.70 Kg/1.5 lbs
Dimensions: 180 x 150 x 55 mm, 7.1 x 5.9 x 2.2 inch
