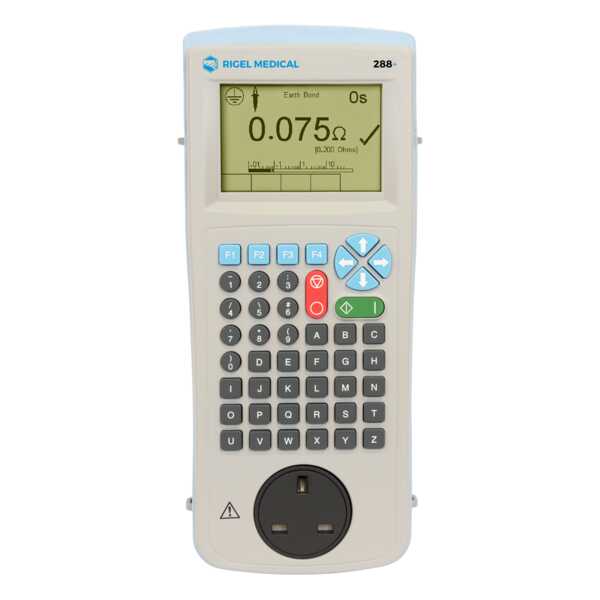

Gossen Metrawatt Rigel 288 Plus ເຄື່ອງວິເຄາະຄວາມປອດໄພທາງໄຟຟ້າແບບຖືດ້ວຍມື (DC >200 mA; 50...500 V DC; 4 µA – 9999 µA)
Application: Routine testing, service, and asset management of medical electrical equipment
Design: Portable, battery-powered
Battery: 6 x 1.5V AA
Dimensions (L x W x D): 270 x 110 x 75 mm
Weight: approx. 1.6 kg
Protection Class: IP40
Standards: IEC/EN 62353, IEC/EN 60601-1, IEC 61010, NFPA-99, AS/NZS 3551
Measurement Functions:
Earth/Ground Bond Resistance: >200 mA DC test current
Insulation Resistance: 50 / 100 / 250 / 500 V DC
Leakage Current: 4 µA – 9999 µA
Leakage Methods: Direct, differential, alternative
Patient Leakage Tests: AP-GND, AP-CASE, AP-AP, AP-ALL
Touch Leakage: Yes
Power Measurement: 0.1 – 4 kVA
Mains Measurement: 0 – 300 VAC
IEC Lead Test: Continuity, insulation, polarity
Features:
Test Modes: Automatic & manual sequences
Test Routines: User-definable
Data Storage: up to 5,000 test results
Data Transfer: Wireless via mobile app (Rigel 288+ Downloader)
Connectivity: Bluetooth (printer support)
Printing: Direct Bluetooth printing
Verification: Automatic secondary check for measurement validity
Operation: Battery-powered → full portability for field service
Special Features:
Low-energy high-current bond test: Accurate and safe measurement
24V / 48V equipment testing: Supported via 50V & 100V insulation tests
All-in-one analyzer: Combines leakage, insulation, and bond testing in one unit
