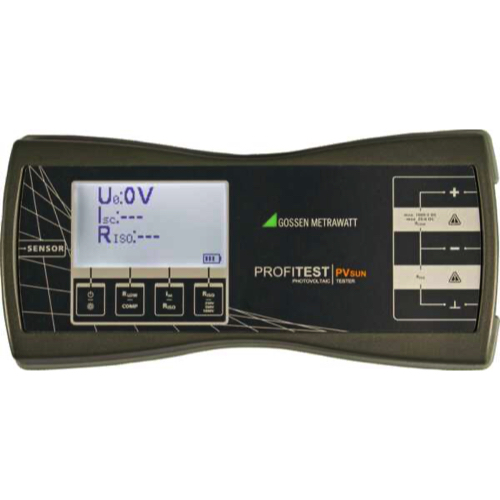

Gossen Metrawatt PROFITEST PVSUN ການທົດສອບລະບົບໄຟຟ້າແສງຕາເວັນ (1000 V DC; 20 A DC)
Voltage measurement: 0 to 1000 V DC
Current measurement (direct): 0 to 20 A DC
Insulation resistance measurement
Measuring range: 0 to 20 MΩ
Test voltages: 250, 500 and 1000 V DC
Ground fault measurement: 0 to 1000 V DC
Testing for protective conductor continuity: 0 to 10 Ω
Display: LCD Multiple display with background illumination; Dot matrix: 128 x 64 pixels
Protection: Housing: IP 42 per DIN VDE 0470 part 1/EN 60529
Dimensions: 209 x 98 x 35 mm
Weight: approx. 500 g with batteries
Description
Test instrument for testing PV modules and strings with up to 1.000 V / 20 A per DIN EN 62446.
Insulation measurement with up to 1.000 V test voltage, polarity test, ground fault test and protective conductor continuity test.

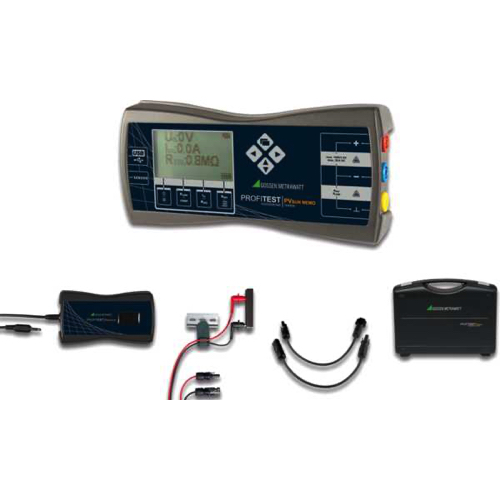

With measurement cables and adapters in test case.
