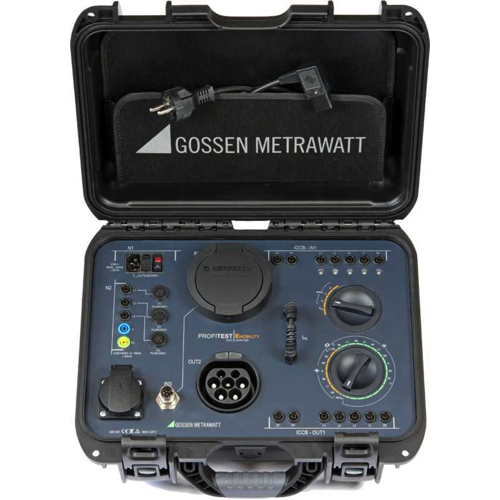

Application: Standards-compliant testing of single and 3-phase Mode 2 and 3 charging cables
Fault Simulation: Interruption of conductors, reversed wires, and PE to phase
Protective Conductor Current: 0 to 30 mA AC (with METRACLIP 61 accessory)
Nominal Line Voltage: 230/400 V 50 Hz
Throughput Rating: Earth contact: 20 VA; CEE: 60 VA
Electrical Safety Category: 300 V CAT II
Test Outlets:
Earth contact (IN4): 1P+N+PE, 0.8 A, 230 V
3P+N+PE (IN2/OUT2): 0.8 A, 400 V
Protection Rating (IP Code): Housing IP40, Terminals IP20 (per DIN EN 60529)
Operating Temperature Range: –5°C to +50°C
Storage Temperature Range: –20°C to +60°C
Dimensions (W × H × D): approx. 401 × 307 × 173 mm (without connector cable)
Weight: approx. 6.4 kg (including connector cable)
Compatible Instruments: PROFITEST MF series, MASTER series, MASTER IQ series, PRIME/PRIME AC, and SECUTEST ST PRO/BASE.
