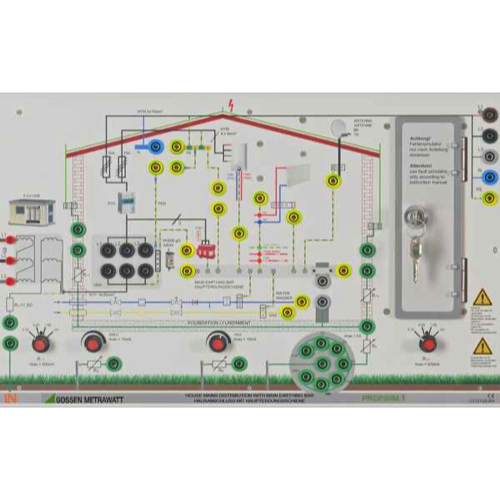

Gossen Metrawatt PROFiSIM 1 ການທົດສອບການຕິດຕັ້ງ ແລະ ລະບົບໄຟຟ້າ (3 × 230/400 V; 50/60 Hz)
Simulation of a Building Installation
Simulation of external lightning protection:
R1, R2 = 0.1 Ω, 0.2 Ω, 1.0 Ω, ∞, Imax. = 200 mA
Earth simulation: RE = 0.5 Ω, 1.0 Ω, 2.0 Ω, 5.0 Ω, 10 Ω, 50 Ω, 100 Ω, Imax. = 5 A
Simulation of the auxiliary earth electrode: RH = 0 ... 1 kΩ, Imax. = 10 mA
Simulation of the earth probe: RS = 0 ... 50 kΩ, Imax. = 10 mA
Simulation of the operational earth electrode: RB = 1.5 Ω, Imax. = 10 A
Connection panel for downstream sub-distributors of a consumer system
Connection Values
Mains connection: 16 A CEE plug
Connector cable: Approx. 2.5 m
Nominal voltage: 3 x 230/400 V
Frequency: 50/60 Hz
Protection category: I
Mechanical Design
Dimensions: 297 x 456 x 80 mm
Weight: Approx. 2.2 kg
Inputs/outputs: 4 mm safety sockets
Ambient Conditions
Ambient temperature: Max. +35 °C
Relative humidity: Max. 60%, condensation is ruled out
Fault Simulation: Fault simulator with 12 fault options via switches
