Voltage Range: 12 V to 1000 V AC / 12 V to 1500 V DC
Display Type: Hybrid display — LED levels for quick reference and a Backlit LCD for precise values
Frequency Range: 16.7 Hz to 950 Hz (with Frequency measurement)
Resistance & Diode: Resistance measurement and Diode testing (displayed on LCD)
Testing Functions:
Automatic mode for voltage/continuity
Single-pole phase test and Phase sequence display
Non-Contact Voltage (NCV) detection
Polarity display
RCD Tripping: Intentional 30 mA RCD tripping test via dual pushbuttons
Safety Feedback: Vibration alarm in the handle and integrated Flashlight
Electrical Safety Category: CAT III 1000 V AC / 1500 V DC; CAT IV 600 V
Protection Rating: IP64 (dust-protected and splash-proof)
Special Features: Includes GS 38 test probe caps and screw-on test probe extensions; automatic voltage/continuity switching.
Datasheet
Delivery

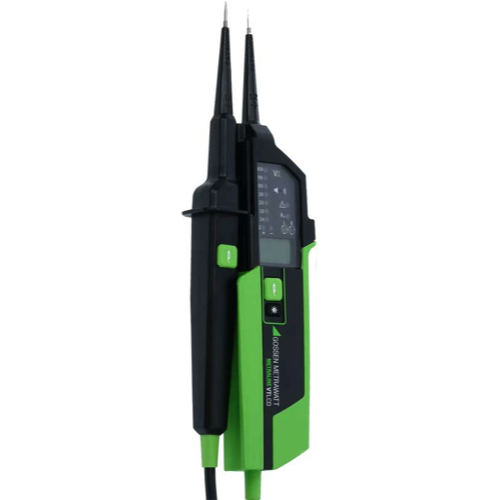

1x METRALINE VT LCD (M611H)
2x 4 mm test probe tip adapters (round contact pins) (in holder on test probe cap)
2x Screw-on safety caps for CAT IV 600 V / CAT III 1000 V / GS-38 (in holder on test probe cap)
1x Test probe cap (on cable)
2x Batteries (1.5 V, IEC AAA)
1x Operating instructions
